How to Protect Engine Components and Replace the Power Steering Pump on an Acura TL?

Use shop towels to protect engine components from spilled fluid during this procedure and clean any spilled fluid immediately. On 2004 and later models, remove the right-side engine cover and engine mount bracket on the right side of the engine. Remove the drivebelt. Place a clamp on the power steering feed hose to minimize fluid loss when the hose is disconnected, then disconnect the fluid hoses at the pump. The return hose is held to the pump with a spring type clamp, and the pressure line has two bolts securing it to the pump body. Cap or plug both hoses to prevent leakage or contamination, and install a new O-ring on the end of the pressure line. It's advisable to remove the fluid from the power steering pump reservoir and replace it with new fluid before installing a replacement pump. Remove the pump mounting bolts and take the pump out of the engine. Installation is the reverse of removal, and be sure to bleed the power steering system.

Genuine Acura TL Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Power Steering Pumps found

View related parts

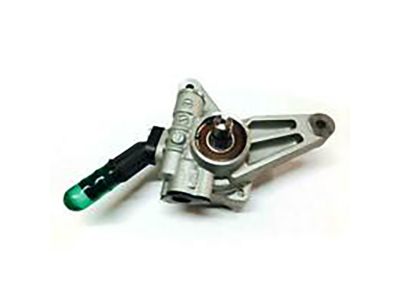

Acura TL Power Steering Pump Assembly
Part Number: 56110-RDB-A01
$613.53 MSRP: $876.22
You Save: $262.69 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

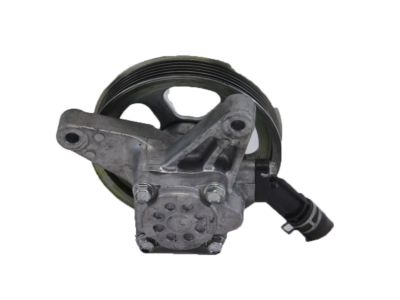

Acura TL Power Steering Pump
Part Number: 56110-P8E-A01
$821.91 MSRP: $1173.82
You Save: $351.91 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump Assembly
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

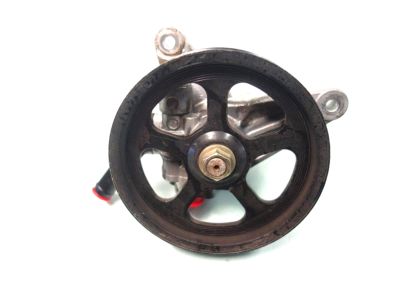

Acura TL Power Steering Pump
Part Number: 06561-RDB-305RM
$404.75 MSRP: $574.30
You Save: $169.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 56100-RDB-A01RM
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

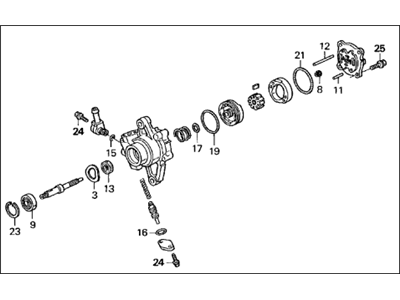

Acura TL Power Steering Pump Sub-Assembly
Part Number: 56110-RDA-A01
$613.53 MSRP: $876.22
You Save: $262.69 (30%)
ADD TO CART
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump (Reman)
Part Number: 06561-RDA-505RM
$456.83 MSRP: $648.68
You Save: $191.85 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Power Steering (Reman); Power Steering Pump
- Replaces: 56100-RDA-A01RM
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

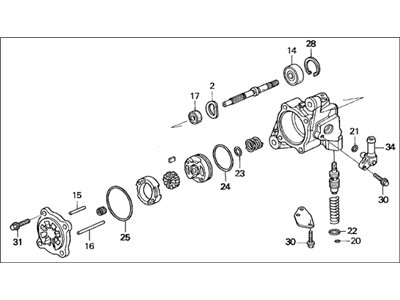

Acura TL Power Steering Pump Sub-Assembly (Reman)
Part Number: 06561-PV3-505RM
$219.94 MSRP: $506.25
You Save: $286.31 (57%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering (Reman)
- Replaces: 56110-PV3-003RM
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump Sub-Assembly
Part Number: 06561-P5A-506RM
Product Specifications
- Replaces: 56100-P5A-023RM
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump Sub-Assembly (Reman)
Part Number: 06561-P5A-505RM
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering (Reman)
- Replaces: 56110-P5A-003RM, 56100-P5A-013RM
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump Sub-Assembly
Part Number: 56110-P5G-003
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump, Power Steering Pump Assembly
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump Sub-Assembly
Part Number: 56110-P5A-003
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump, Power Steering Pump Assembly
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump Sub-Assembly
Part Number: 56110-PV3-003
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump, Power Steering Pump Assembly
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Power Steering Pump Sub-Assembly
Part Number: 56110-P5A-023
Product Specifications
- Other Name: Pump Sub-Assembly, Power Steering; Power Steering Pump, Power Steering Pump Assembly
- Replaces: 56110-P5A-013
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura TL Power Steering Pump

The Power Steering Pump creates hydraulic pressure for the steering rack and helps smooth steering anytime you turn the wheel. The original Acura TL came with a belt-driven Power Steering Pump that drew fluid from a reservoir, which was pushed through high-pressure lines to a control valve, where the flow was directed to a hydraulic piston inside the steering rack, giving a quick assist to the driver while keeping a fallback mechanical setup. The Power Steering Pump design is driven by a V-belt or serpentine belt. The Acura editions later retained the hydraulic design. However, they added electronics that enable the system to adjust itself. This helps the flow to vary and provide additional steering when parking. It also gives flow for a steady feel while the car is at speed. During the later stages of the TL generation, the major change observed was in the flow-control strategy adopted. No matter the style, squealing belts, whining fluid, delayed response, or heavy wheel feel are signs the Power Steering Pump is failing. A timely replacement restores the precise steering feel TL owners expect from an Acura sedan and ensures the Power Steering Pump operates effectively.

We provide a broad range of OEM Acura TL Power Steering Pump at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura TL Power Steering Pump Parts Questions & Experts Answers

Power Steering Pump Sub-Assembly
56110-RDA-A01
Q: How to Protect Engine Components and Replace the Power Steering Pump on an Acura TL?
A:
Use shop towels to protect engine components from spilled fluid during this procedure and clean any spilled fluid immediately. On 2004 and later models, remove the right-side engine cover and engine mount bracket on the right side of the engine. Remove the drivebelt. Place a clamp on the power steering feed hose to minimize fluid loss when the hose is disconnected, then disconnect the fluid hoses at the pump. The return hose is held to the pump with a spring type clamp, and the pressure line has two bolts securing it to the pump body. Cap or plug both hoses to prevent leakage or contamination, and install a new O-ring on the end of the pressure line. It's advisable to remove the fluid from the power steering pump reservoir and replace it with new fluid before installing a replacement pump. Remove the pump mounting bolts and take the pump out of the engine. Installation is the reverse of removal, and be sure to bleed the power steering system.
