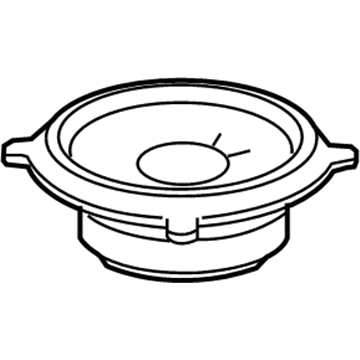

Acura 39120-SEP-A61 Speaker Assembly (20Cm) (Sld)

Make sure you have the radio anti-theft code and have jotted down the radio station preset frequencies you want to use before you start. For 1999 through 2003 models, start by removing the rear console and console panel, then take out all six radio mounting bolts: Each side has two and two on the front. Uncover the radio and CD console box or radio and climate control unit, as a single assembly, and remove them from the truck by unhooking the appropriate electrical connectors. Remove the two mounting screws to separate CD console box or climate control from the radio. It is the reverse of removal. 2004 or later models have the radio, navigation display screen and HVAC controls combined into one assembly. We'll start by removing the center console rear section, center console panel as well as the upper panel. The audio-HVAC assembly and display module assembly mounting bolts are removed with remove the audio-HVAC assembly and disconnect the antenna cable and electrical connectors. To separate radio from HVAC display module remove the bolts and screws from the side brackets, installation of which is the reverse of this. For door speakers you'll want to remove the door trim panel, remove the three speaker screws, pull the speaker out, disconnect the speaker electrical connector. Reverse of removal is installation. On contact with tweeter and front centre speaker, use a small bit of screw driver to take off the grille and take off the electrical connector carefully, without damaging that thin technological plastic housing. Removal is the opposite of installation. And installation, similar to removal, but remove the rear shelf, remove the speaker mounting screws, pull the speaker from the mounting hole, and unplug the electrical connector.
