How to remove and install the Intake Manifold on a DOHC engine in an Acura Integra?

Question

Accepted Answer

To remove the intake manifold, first disconnect the cable from the negative terminal of the battery, ensuring you have the correct activation code for the radio if it has an anti-theft system. Drain the cooling system and remove the intake air duct and air cleaner housing, noting that on 1999 and later CR-V models, the intake air resonator chamber must also be removed. Clearly label and detach any vacuum lines and electrical connectors that may interfere with the removal process, paying special attention to the intake air bypass solenoid connector on B18C1 engines, which may be difficult to access. Detach the accelerator cable and, if applicable, the cruise control cable from the throttle lever, then remove the coolant hoses from the throttle body and the Idle Air Control (IAC) valve. Relieve the fuel system pressure and disconnect the fuel feed and return lines at the fuel rail. From underneath the engine compartment, remove the brace supporting the intake manifold by taking out the bolts. Disconnect the coolant bypass hose from the timing belt end of the intake manifold and remove the intake manifold mounting nuts before taking the manifold off the engine. If working on a manifold with a removable air chamber on B18C1 engines, separate it from the manifold as needed, along with any gaskets. For installation, clean the manifold nuts with solvent and dry them with compressed air if available, then check the mating surfaces for flatness using a precision straightedge and feeler gauge. Inspect the manifold for cracks and distortion, replacing it if necessary, and check for any stripped or broken intake manifold bolts or studs, replacing defective fasteners. Remove all traces of old gasket material from the cylinder head and manifold mating surfaces with a scraper, then clean the surfaces with lacquer thinner or acetone. Install the intake manifold with a new gasket, tightening the nuts finger-tight before following the recommended sequence to torque them properly. The remainder of the installation process follows the reverse order of removal.

Genuine Acura Intake Manifold

82 Intake Manifolds found

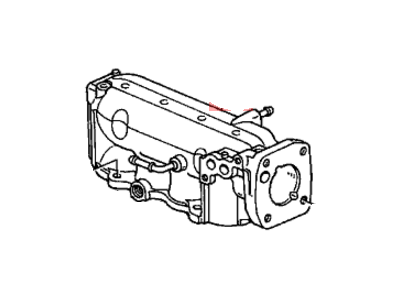

Acura Intake Manifold

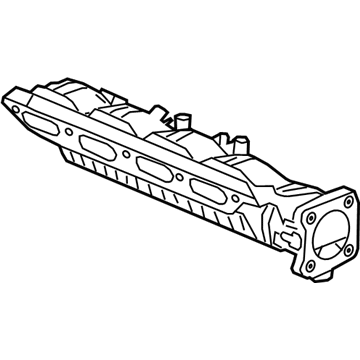

Acura Intake Manifold

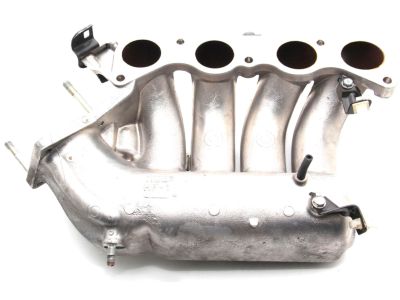

Acura Manifold Complete ,Int

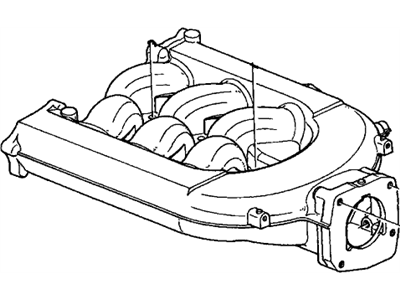

Acura Intake Manifold

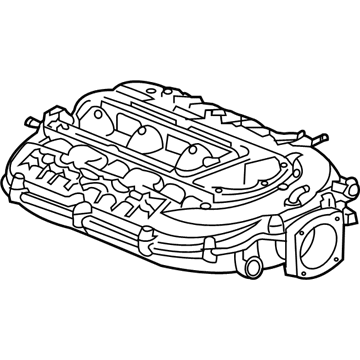

Acura Manifold, Intake

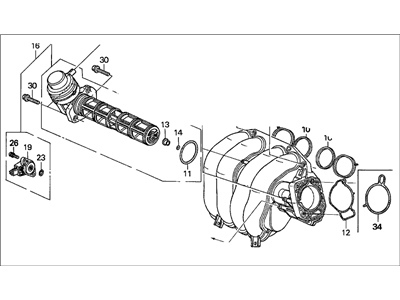

Acura Intake Manifold

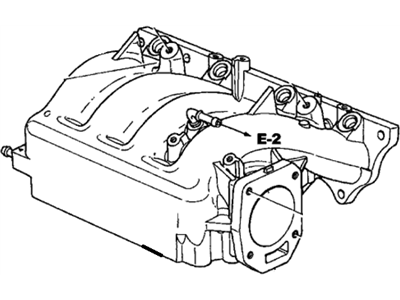

Acura Manifold, Intake

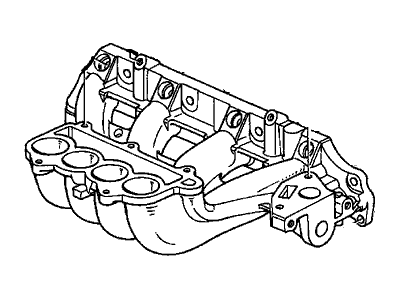

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Intake Manifold

Acura Upper Air Intake Manifold

Acura Manifold Sub-Assembly

Acura Intake Manifold

Acura Intake Manifold Parts Questions & Experts Answers
