How to remove and install an A/C Condenser in an Acura MDX?

Have the refrigerant discharged and recovered by an air conditioning technician. Disconnect the cable from the negative battery terminal. Remove the plastic cover over the radiator. Remove the front bumper cover. Remove the hood latch. On 2007 Acura MDX models, remove the ATF cooler bracket located in front of the condenser. Remove the radiator and condenser mounting brackets. Disconnect the refrigerant lines from the condenser. Cap the fittings on the condenser and lines to prevent the entry of dirt or moisture. Remove the condenser by lifting it straight up and out of the engine compartment between the radiator and power steering lines or ATF cooler. Be careful not to damage any of the fins on it or the radiator. Check the rubber mounts on the bottom of the condenser for wear or deterioration and replace them if necessary. Installation is the reverse of removal. Tighten the line fitting mounting bolts. If a new condenser is being installed, add 1-1/6 ounces (35 ml) of fresh refrigerant oil. Assemble all connections with new O-rings, lightly lubricated with R-134a refrigerant oil. On 2007 Acura MDX models, add 1-2/3 ounces (50 ml) of fresh refrigerant oil. Reconnect the battery. Have the system evacuated, charged and leak tested by the shop that discharged it.

Genuine Acura MDX A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 A/C Condensers found

View related parts

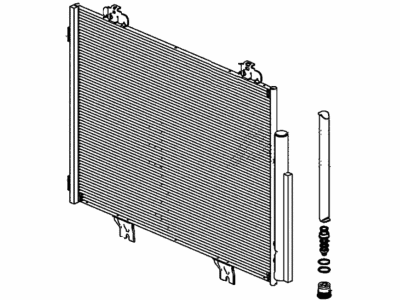

Acura MDX Condenser Assembly
Part Number: 80100-TYA-A11
$208.02 MSRP: $297.08
You Save: $89.06 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Condenser Assembly
Part Number: 80100-TZ5-A03
$208.02 MSRP: $297.08
You Save: $89.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

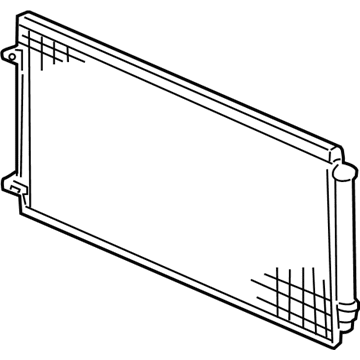

Acura MDX Condenser Assembly
Part Number: 80110-STX-A01
$208.02 MSRP: $297.08
You Save: $89.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

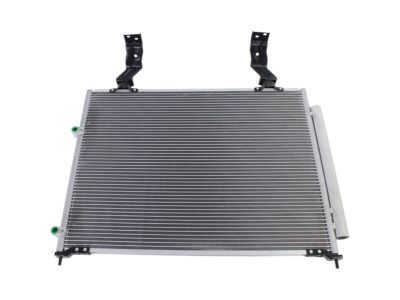

Acura MDX Condenser Assembly
Part Number: 80100-S3V-306
Product Specifications
- Other Name: Condenser
- Replaces: 80100-S3V-A11
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX A/C Condenser Assembly
Part Number: 80100-S3V-305
Product Specifications
- Other Name: Condenser Assembly; Condenser
- Replaces: 80100-S3V-A02, 80100-S3V-A03, 80100-S3V-A01
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Condenser Assembly
Part Number: 80100-TYR-A02
$208.02 MSRP: $297.08
You Save: $89.06 (30%)
Product Specifications
- Other Name: Condenser
- Replaces: 80100-TRX-A01, 80100-TYR-A01
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura MDX A/C Condenser

The Acura MDX A/C Condenser works by taking hot refrigerant gas and sending it to outside air to create cool liquid refrigerant. This process removes excess heat from the cabin. The A/C Condenser consists of lightweight aluminum and a series of tubes paired with tightly packed fins that provide a large surface area with passing airflow to allow thermal energy to escape quickly. Positioned directly in front of the radiator, the A/C Condenser receives the greatly hot refrigerant from the compressor, releases compression heat, and routes the now liquid refrigerant to the accumulator for continued circulation. Through each Acura generation of the MDX, designers have kept a tough parallel flow tube and fin A/C Condenser due to its strong, affordable, and rapid cooling, ensuring the SUV performs reliably in traffic or on the highway. Some brands try out different core shapes. However, with its practical design, the MDX benefits from this proven shape. This is evidence of Acura's commitment to reliable simplicity. The MDX cabin is kept chilled due to the A/C Condenser requiring a constant flow of fresh air. This provides Acura families peace of mind during sweltering summer stops.

We provide a broad range of OEM Acura MDX A/C Condenser at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura MDX A/C Condenser Parts Questions & Experts Answers

Condenser Assembly
80100-S3V-306
Q: How to remove and install an A/C Condenser in an Acura MDX?
A:
Have the refrigerant discharged and recovered by an air conditioning technician. Disconnect the cable from the negative battery terminal. Remove the plastic cover over the radiator. Remove the front bumper cover. Remove the hood latch. On 2007 Acura MDX models, remove the ATF cooler bracket located in front of the condenser. Remove the radiator and condenser mounting brackets. Disconnect the refrigerant lines from the condenser. Cap the fittings on the condenser and lines to prevent the entry of dirt or moisture. Remove the condenser by lifting it straight up and out of the engine compartment between the radiator and power steering lines or ATF cooler. Be careful not to damage any of the fins on it or the radiator. Check the rubber mounts on the bottom of the condenser for wear or deterioration and replace them if necessary. Installation is the reverse of removal. Tighten the line fitting mounting bolts. If a new condenser is being installed, add 1-1/6 ounces (35 ml) of fresh refrigerant oil. Assemble all connections with new O-rings, lightly lubricated with R-134a refrigerant oil. On 2007 Acura MDX models, add 1-2/3 ounces (50 ml) of fresh refrigerant oil. Reconnect the battery. Have the system evacuated, charged and leak tested by the shop that discharged it.
