How to remove and install a Throttle Body on an Acura MDX?

To replace the throttle body, disconnect the negative battery terminal and pinch off the coolant hoses to the throttle body. Remove the air intake duct. For some Acura and Honda models, detach the cable bracket from the throttle body. Disconnect the electrical connector from the MAP sensor, and TP sensor, and disconnect the coolant hoses from the throttle body. Disconnect the EVAP purge valve hose and the electrical connector from the IAC valve. Remove the throttle body, the spacer, and the gaskets. During installation, use new gaskets and tighten the throttle body mounts. Check the coolant level and adjust if necessary. Reconnect the cable to the negative battery terminal, start the engine, and check for leaks.

Genuine Acura MDX Throttle Body

Fuel Injection Throttle Body

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Throttle Bodies found

View related parts

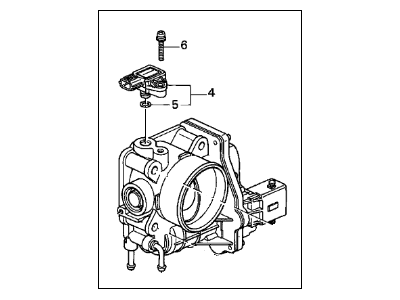

Acura MDX Throttle Body Assembly
Part Number: 16400-R9P-A01
$218.15 MSRP: $311.55
You Save: $93.40 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Throttle Body, Electronic Control (Gmf6A); Throttle Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

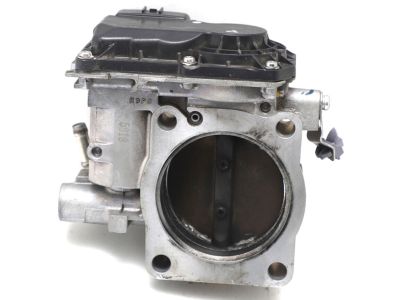

Acura MDX Throttle Body
Part Number: 16400-RYE-A11
$378.69 MSRP: $540.83
You Save: $162.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

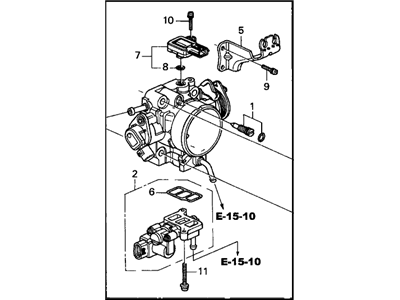

Acura MDX Fuel Injection Throttle Body (Gmc1E)
Part Number: 16400-RN0-A01
$258.01 MSRP: $368.48
You Save: $110.47 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Throttle Body, Electronic Control (Gmc1E); Throttle Body
- Replaces: 16400-RYE-A01
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

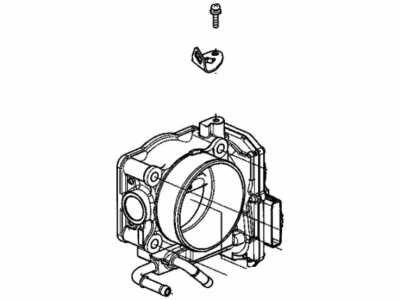

Acura MDX Throttle Electronic Control Body Assembly
Part Number: 16400-RDM-A01
$985.30 MSRP: $1407.17
You Save: $421.87 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Body Assembly, Throttle Electronic Control; Throttle Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Electronic Control Throttle Body (Gmf6B)
Part Number: 16400-5J6-A01
$202.16 MSRP: $288.72
You Save: $86.56 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Throttle Body, Electronic Control (Gmf6B); Throttle Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Throttle Body Assembly
Part Number: 16400-PGK-A04
$656.05 MSRP: $936.95
You Save: $280.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Throttle Body
- Replaces: 16400-PGK-A01, 16400-PGK-A03, 16400-PGK-A02
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Body Assembly (Gmj0A)
Part Number: 16400-6S9-A01
$180.13 MSRP: $257.25
You Save: $77.12 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: BODY ASSY. (GMJ0A); Throttle Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Throttle Body
Part Number: 16400-5MR-A01
$243.09 MSRP: $347.17
You Save: $104.08 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Electronic Control Throttle Body (Gmh9A)
Part Number: 16400-5WS-A01
$280.15 MSRP: $400.10
You Save: $119.95 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Throttle Body, Electronic Control (Gmh9A); Throttle Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Electronic Control Throttle Body
Part Number: 16400-RDJ-A01
Product Specifications
- Other Name: Throttle Body, Electronic Control; Throttle Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura MDX Throttle Body

The V6 engine of the Acura MDX gets a readily available air supply thanks to the Throttle Body. Throttle response is crisp and fuel economy is balanced. Positioned between the air filter housing and the intake manifold is a Throttle Body. It consists of a butterfly plate that opens and closes in accordance with the accelerator pedal position. The Powertrain Control Module (PCM) modulates fuel injector pulse width to attain the correct air fuel ratio. The earlier MDX generations had a plate that connected to the cable. The later MDX versions switched to electronic throttle control. Electronic throttle control is a drive by wire setup. It has an electric motor that replaces the mechanical linkage. Furthermore, the motor is commanded by pedal position sensors. This makes for a much smoother throttle input. It also allows for the addition of traction and stability features. Regardless of the version, sensors like the throttle position sensor and an idle bypass port connected to an idle air control valve allow the computer to fine-tune idle speed. Over mileage, wear and tear of the shaft and carbon deposits in the Throttle Body can cause rough running. Periodic cleaning of the Throttle Body will make it functional again. For each MDX, multi port injection is applied. This means fuel is delivered in the intake runners and not in the Throttle Body. This is different from body injection units and helps Acura buyers. The current Acura design keeps the aluminum housing light yet strong.

We provide a broad range of OEM Acura MDX Throttle Body at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura MDX Throttle Body Parts Questions & Experts Answers

Fuel Injection Throttle Body (Gmc1E)
16400-RN0-A01
Q: How to remove and install a Throttle Body on an Acura MDX?
A:
To replace the throttle body, disconnect the negative battery terminal and pinch off the coolant hoses to the throttle body. Remove the air intake duct. For some Acura and Honda models, detach the cable bracket from the throttle body. Disconnect the electrical connector from the MAP sensor, and TP sensor, and disconnect the coolant hoses from the throttle body. Disconnect the EVAP purge valve hose and the electrical connector from the IAC valve. Remove the throttle body, the spacer, and the gaskets. During installation, use new gaskets and tighten the throttle body mounts. Check the coolant level and adjust if necessary. Reconnect the cable to the negative battery terminal, start the engine, and check for leaks.
