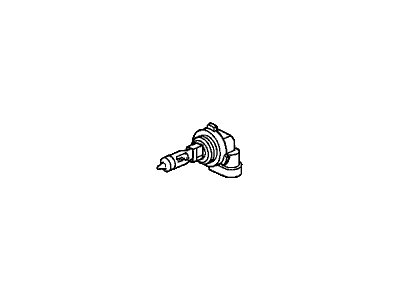

Acura 33104-S3V-A01 Headlamp Bulb (HB4) (12V 51W) (Sylvania)

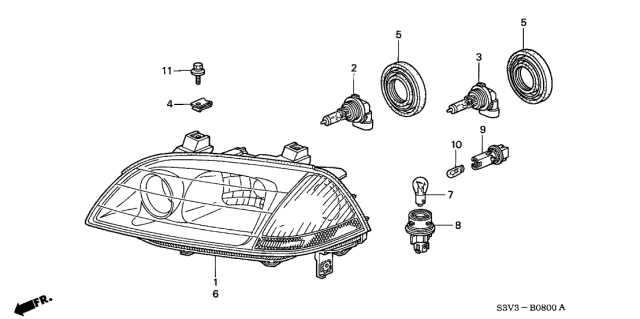

Make sure the ignition switch as well as the headlight switch are both turned off and then open the hood. Disconnect the electrical connector from the headlight bulb. If available, pull one of its tabs so that you may remove them easily for a rubber weather seal within a headlight housing. Disengage the bulb retainer wire and remove the bulb from the headlight housing. Push it up until it clears the slot, then push it forward to disengage its slot, pull it back and finally remove just a single headlight bulb. While inserting that into your headlights assembly be careful not to touch any part of its glass with bare fingers. Make sure that three metallic tabs on this bulb do align along with these three slots in such plastic mounting base and also that this flange for mounting this bulb is completely seated against base. Then swing back again into place this bulb retainer wire and engage at its end with slotting it has. At rear side within headlight assemblies set up a rubber weather seal on models equipped like this one is being done here . In performing this task ensure that an arrow or "top" word is situated at twelve o'clock position. Lastly, plug in electric connector.
