Your vehicle deserves only genuine OEM Acura parts and accessories. To ensure reliability, purchase Acura part # 06561-RDJ-505RM Power Steering Pump (Reman). It is sometimes referred to as Acura Power Steering Pump. Our Acura parts and accessories are expedited directly from authorized Acura dealers strategically located all across the U.S. and are backed by the manufacturer's 12 month, 12,000 mile warranty. OEM Acura parts are the best for restoring your vehicle to factory condition performance. This part fits 2003-2006 Acura MDX.
Affordable, reliable and built to last, Acura part # 06561RDJ505RM Power Steering Pump (Reman) stands out as the smart option. AcuraPartsWarehouse.com is your prime online source with the biggest and best selection of genuine Acura parts and accessories at giant discounted prices. We have the OEM Acura parts and accessories you need at the wholesale prices. AcuraPartsWarehouse.com has you covered no matter what type of Acura vehicle you drive.
×
My Garage
My Account
My Cart
Make sure this part fits your vehicle

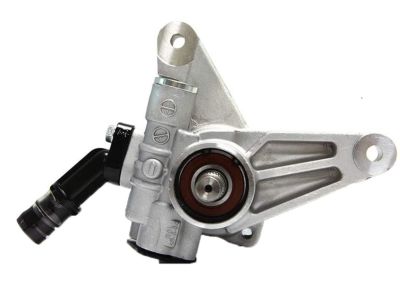

Acura 06561-RDJ-505RM Power Steering Pump (Reman)
2003-2006 Acura MDX 06561RDJ505RM
- Part DescriptionPump, Power Steering (Reman)
- Replaces56100-RDJ-A01RM, 56110-RDJ-A01RM
- ManufacturerAcura
$450.72 MSRP: $639.95 1
You Save: $189.23 (30%)
Core Charge: $125.00
Ships in 1-2 Business Days

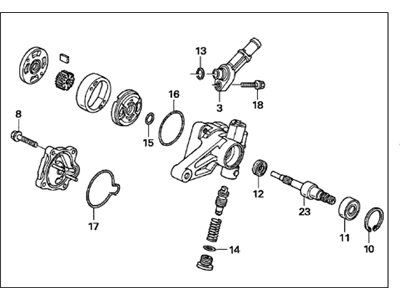

06561-RDJ-505RM Power Steering Pump (Reman) is Ref No. 2 in the diagram below
Flange (8X28) Bolt90105-S50-003
Flange Bolt (6X20)91350-P8C-A01
Inlet Joint56123-RCA-A01
O Ring (15.2X2.4)91347-P2A-003
O-Ring (13.0X1.9)91345-RDA-A01
O-Ring 16.7X1.891347-PAA-A01
O-Ring 51X2.4 (51.0X2.4)91348-P2A-003
Power Steering Pump Cover Seal91349-P2A-003
Power Steering Pump Drive Shaft56141-PAA-A01
Power Steering Pump Seal 18.9X32.3X9.391249-PNC-003
Product Specifications
Brand Genuine Acura Manufacturer Part Number 06561-RDJ-505RM Part Description Pump, Power Steering (Reman) Item Dimensions 12.1 x 11.2 x 9.5 inches Item Weight 11.20 Pounds Condition New Fitment Type Direct Replacement Replaces 56100-RDJ-A01RM, 56110-RDJ-A01RM Manufacturer Acura SKU 06561-RDJ-505RM Warranty This genuine Acura part is guaranteed by Acura's factory warranty. Shipping & Return Shipping Policy Return Policy Warning: California’s Proposition 65Vehicle Fitment
Year Make Model Body & Trim Emission & Transmission 2006 Acura MDX 5 Door Premium, 5 Door Touring KA 5AT 2005 Acura MDX 5 Door Premium, 5 Door Touring KA 5AT 2004 Acura MDX 5 Door Premium, 5 Door Touring KA 5AT 2003 Acura MDX 5 Door Premium, 5 Door Touring KA 5AT
Customer Questions & Answers
- Q:Is this the correct part for my vehicle? Posted by AcuraPartsWarehouse Specialist
- A:You can Select Your Vehicle to check if 06561-RDJ-505RM fits your vehicle.Posted by AcuraPartsWarehouse Specialist
- Q:How to remove and install a power steering pump? Posted by Customer
- A:Remove the drivebelt. Clamp the power steering feed hose shut so fluid loss will be minimized when the hose is disconnected, then disconnect the feed hose and pressure line at the pump. Cap or plug all openings (line, hose and pump) to prevent leakage or contamination. Remove the pump mounting fasteners and remove the pump (Power steering pump lower mounting boll). Installation is the reverse of removal. Install a new 0-ring on the end of the pressure line. On models with a separate power steering belt, be sure that the drivebelt tension is correct, check the power steering fluid level and add some, if necessary, then bleed the power steering system.Posted by AcuraPartsWarehouse Specialist
If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
Genuine Acura Part 06561-RDJ-505RM, the Right Choice
