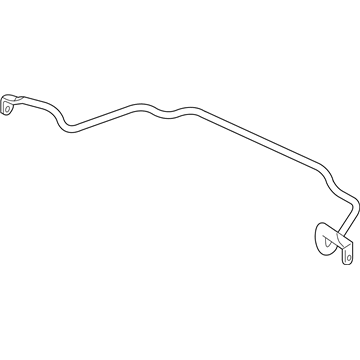

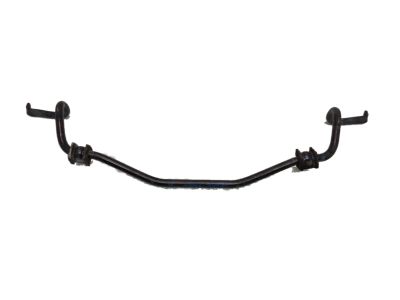

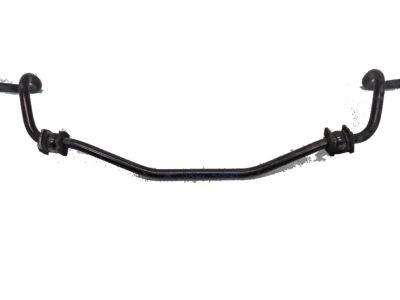

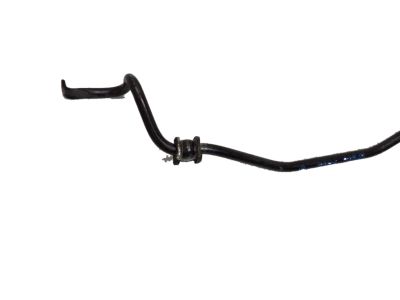

Acura 06510-STX-A00 Front Stabilizer Sway Bar

To replace bushings and links, loosen the front wheel lug nuts and raise the vehicle with jack stands. Remove the wheels and the bolts from the Sway Bar Bushing retainers. Remove the nuts attaching the Sway Bar Link to the strut/coil spring assembly and Sway Bar Kit. Detach the links, holding the stud with an Allen wrench if needed. Inspect the retainer bushings for damage and replace if needed. If the ball studs on the links are worn, replace the links. Install new links and retainer bushings, lubricating them with vegetable oil. Install the retainers and bolts, tighten to the specified torque, and reinstall the wheels. Lower the vehicle and tighten the lug nuts. For a 2007 Acura MDX, the Sway Bar Kit can be removed without removing the sub frame. For other models, a body repair shop should remove the sub frame.

On 2007 Acura MDX models, the links and bushings can be removed following the described procedure.
