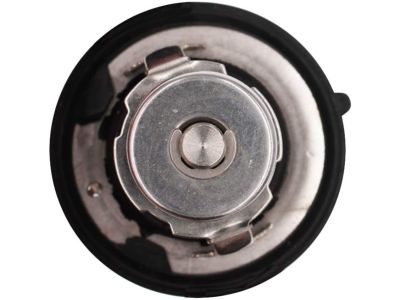

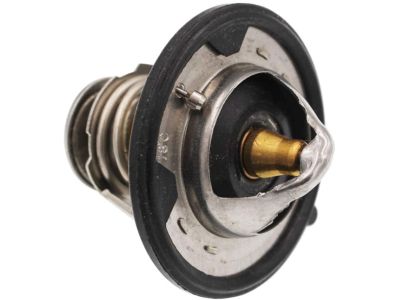

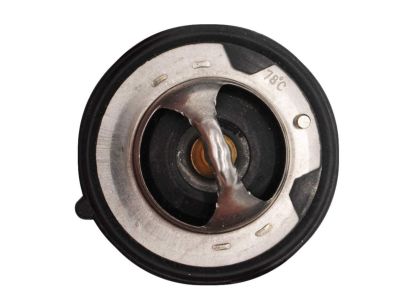

Acura 19301-P8E-A10 Thermostat Assembly (Nippon Thermostat)

Before assuming the thermostat is responsible for a cooling system issue, inspect the coolant level, drivebelt tension, and temperature gauge operation. If the engine takes a long time to warm up based on the heater output or temperature gauge, the thermostat might be stuck open, and you should replace it with a new one. If the engine is hot but the lower radiator hose isn't, the thermostat might be stuck closed, preventing the coolant in the engine from reaching the radiator. In this case, replace the thermostat. If the lower radiator hose is warm, it indicates that the coolant is circulating and the thermostat is functioning. For further cooling system diagnosis, consult the troubleshooting section. For replacement: Disconnect the cable from the negative battery terminal. Drain the cooling system, and if the coolant is relatively new or in good shape, keep it for reuse. Remove the air intake duct between the throttle body and the air filter housing. Trace the lower radiator hose to the engine to identify the thermostat housing cover. Loosen the hose clamp and remove the hose from its fitting. If it's tight, use adjustable pliers to twist and detach it. If the hose appears old, replace it. Over time, the thermostat housing cover's hose fitting may corrode. If it's damaged during hose removal, get a new housing cover. Take off the thermostat housing cover bolts and remove the housing cover. Prepare for possible coolant leakage when breaking the gasket seal. There's no need to disconnect ground wires or the ECT sensor connector unless replacing the housing cover. Observe the thermostat's orientation and take it out. Place a new rubber seal on the thermostat, aligning the rubber tang with the jiggle pin. Fit the new thermostat into the housing, ensuring the seal's tang aligns with the housing's notch, positioning the jiggle pin at the top. Reattach the housing cover and tighten its bolts. Reconnect the hose, ensuring the clamp is secure. Reinstall any removed components. Refill the cooling system. Connect the battery. Finally, start the engine, let it reach its normal temperature, and check for any leaks and the thermostat's performance.

Remove the battery and drain the cooling system, potentially saving and reusing the coolant if it's in good condition. Depending on the model year, disconnect the electrical connector or ground wires from the thermostat housing. Unscrew the thermostat housing cover bolts, tap the cover if stuck, and note the thermostat's orientation before removing it. Clean the housing surfaces, install a new seal aligned with the jiggle valve, and position the new thermostat in the housing without sealant, ensuring proper alignment.

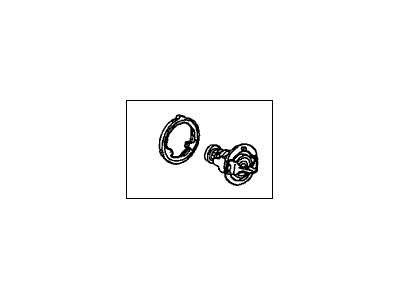

This includes the thermostat assembly and the rubber thermostat mounting.
