AT Main Valve Body fit your 1991 Acura Legend 2 Door LS KA 4AT

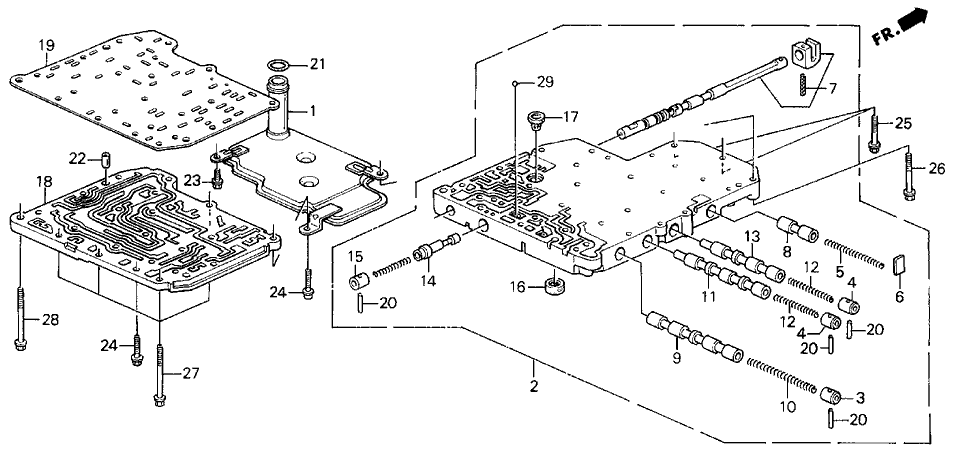

Diagram (1 of 1): AT Main Valve Body

1991 Acura Legend AT Main Valve Body Diagram

Sort by:

Ref No.

Ref No.

Part No.

Part Description

Retail
Price

Your
Price

Qty.

Part No. &
Part Description

1
25420-PY4-000
Strainer (ATF)
$85.74$61.47
1
Add To Cart

2
27000-PY4-000
Body Assy., Main Valve
- Replaced By:
  27000-PY4-010
$600.56$420.52

3
27122-PW4-000
Cap, Low & Second Shift Valve
$6.95$4.97

4
27132-PW4-000
Cap, Second & Third Shift Valve
- Require Quantity:
  2
- Package Quantity:
  1
$7.22$5.16

5
27222-PY4-000
Spring, Kick Down (4-3)
$3.11$2.23

6
27263-PA9-000
Seat, Valve Spring (1.0MM)
$5.50$3.94
1
Add To Cart

7
27420-PY4-000
Valve, Manual
$76.37$54.75

8
27471-PX4-000
Valve, Fourth Exhaust
$17.36$12.44

9
27521-PY4-000
Valve, Shift (1-2)
$38.19$27.38

10
27522-PY4-000
Spring, Shift (1-2)
$3.11$2.23

11
27531-PY4-000
Valve, Shift (2-3)
$38.19$27.38

12
27532-PY4-000
Spring, Shift (2-3)
- Require Quantity:
  2
- Package Quantity:
  1
$3.11$2.23

13
27541-PY4-000
Valve, Shift (3-4)
$38.19$27.38

14
27655-PY4-000
Valve, Clutch Pressure Control
$20.83$14.94

15
27728-PF4-000
Cap, Reverse Control Valve
$4.17$2.99
1
Add To Cart

16
27750-PL5-J01
Filter, Secondary Body
$11.62$8.13
1
Add To Cart

17
27750-PW4-000
Filter, Secondary Body
$10.03$7.19

18
27911-PY4-000
Body, Oil Passage
$178.78$126.57

19
27912-PY4-000
Plate, Oil Passage Separating
- Replaced By:
  27912-PY4-010
$20.11$14.41

20
91101-PF4-003
Roller (3.5X21.8)
- Require Quantity:
  4
- Package Quantity:
  1
$2.40$1.72
1
Add To Cart

21
91308-PA9-003
O-Ring (19.8X1.9) (ARAI)
$4.00$2.87
1
Add To Cart

22
94301-08140
Pin, Dowel (8X14)
- Require Quantity:
  2
- Package Quantity:
  1
$1.93$1.39
1
Add To Cart

23
95701-06012-08
Bolt, Flange (6X12)
$1.50$1.08
1
Add To Cart

24
95701-06025-08
Bolt, Flange (6X25)
- Require Quantity:
  2
- Package Quantity:
  1
$1.53$1.10
1
Add To Cart

25
95701-06030-08
Bolt, Flange (6X30)
- Require Quantity:
  2
- Package Quantity:
  1
$1.87$1.34
1
Add To Cart

26
95701-06040-08
Bolt, Flange (6X40)
$1.62$1.16
1
Add To Cart

27
95701-06050-08
Bolt, Flange (6X50)
- Require Quantity:
  4
- Package Quantity:
  1
$1.87$1.34
1
Add To Cart

28
95701-06060-08
Bolt, Flange (6X60)
$1.87$1.34
1
Add To Cart

29
96211-07000
Ball, Steel (#7) (7/32)
- Require Quantity:
  9
- Package Quantity:
  1
$1.17$0.84
1
Add To Cart

Genuine Acura Parts, the Right Choice

AcuraPartsWarehouse.com offers the wholesale prices for genuine 1991 Acura Legend parts. Parts like AT Main Valve Body are shipped directly from authorized Acura dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Body & Trim: 2 Door LS. Emission & Transmission: KA 4AT.
