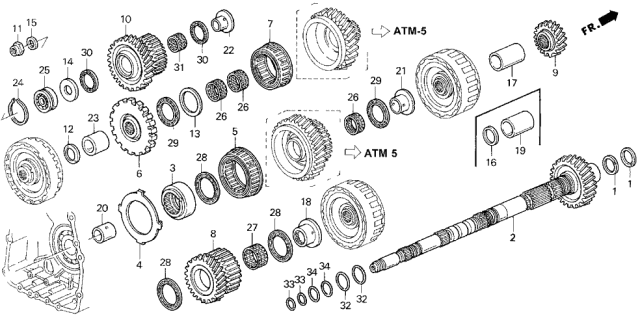

Diagram (1 of 1): AT Countershaft

1993 Acura Legend 4 Door STD KA 4AT AT Countershaft Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
22814-PY4-003
Ring, Sealing (42MM)
- Require Quantity: 2
- Package Quantity: 1

2
23220-PY4-000
Countershaft

3
23423-PY4-000
Hub, One-Way Clutch

4
23424-PY4-003
Plate Set, One-Way Clutch

5
23425-PY4-003
Clutch Assy., Low One-Way
- Replaced By: 23425-PY4-013
5
23425-PY4-013
Clutch Assy., Low One-Way

6
23427-PY4-000
Gear, Parking

7
23435-PY4-003
Clutch Assy., Second One-Way
- Replaced By: 23435-PY4-013
7
23435-PY4-013
Clutch Assy., Second One-Way

8
23451-PY4-010
Gear, Countershaft Third

9
23471-PY4-010
Gear, Countershaft Fourth

10
23551-PY4-020
Gear, Countershaft Reverse

11
90202-PY4-000
Nut, Hex. (24MM) (LEFT HAND THREAD)
$19.17 $13.74
1
Add To Cart

12
90402-PY4-000
Washer, Spring (29MM)
$20.15 $14.45
1
Add To Cart

14
90447-PY4-000
Washer (25MM)

15
90449-PY4-010
Washer (24MM)
$38.82 $27.83
1
Add To Cart

18
90507-PY4-000
Collar, Countershaft Third
$108.78 $77.54
1
Add To Cart

19
90509-PY4-000
Collar, Distance (38.8X69)

20
90511-PY4-000
Collar, Countershaft Second
$52.35 $37.53
1
Add To Cart

21
90512-PY4-000
Collar, Countershaft Low

22
90513-PY4-000
Collar, Countershaft Reverse

23
90517-PY4-000
Collar, Distance (29.2X35.5)

24
90602-PG1-770
Ring, Snap (56MM)

25
91003-PG2-008
Bearing, Special Ball (NTN)
$99.47 $71.32
1
Add To Cart

26
91023-PY4-003
Bearing, Needle (39X44X18.5)
- Require Quantity: 3
- Package Quantity: 1
$46.90 $33.63
1
Add To Cart

27
91025-PY4-003
Bearing, Needle (48X54X24)
$54.13 $38.81
1
Add To Cart

28
91031-PY4-003
Needle, Thrust (55X70X2.5)
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 91031-PY4-013
$39.30 $28.18
1
Add To Cart
28
91031-PY4-013
Bearing, Thrust Needle (55X70X2.5)
- Require Quantity: 3
- Package Quantity: 1
$39.30 $28.18
1
Add To Cart

29
91032-P5D-003
Bearing, Thrust Needle (45X62X2.5)
- Require Quantity: 2
- Package Quantity: 1
$30.57 $21.92
1
Add To Cart

30
91034-PY4-003
Bearing, Thrust Needle (40X54X2)
- Require Quantity: 2
- Package Quantity: 1
$31.65 $22.69
1
Add To Cart

31
91038-PY4-003
Bearing, Needle (34X39X23)
$46.90 $33.63
1
Add To Cart

32
91305-PY4-000
O-Ring (35.2X1.9)
- Require Quantity: 2
- Package Quantity: 1
$3.60 $2.58
1
Add To Cart

33
91307-PY4-003
O-Ring (24.5X1.9)
- Require Quantity: 2
- Package Quantity: 1
$3.13 $2.25
1
Add To Cart

34
91316-PR9-003
O-Ring (33X1.9) (ARAI)
- Require Quantity: 2
- Package Quantity: 1
$4.60 $3.30
1
Add To Cart

Genuine Acura Parts, the Right Choice

AcuraPartsWarehouse.com offers the wholesale prices for genuine 1993 Acura Legend parts. Parts like AT Countershaft are shipped directly from authorized Acura dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Body & Trim: 4 Door STD. Emission & Transmission: KA 4AT.
