Genuine Acura Legend Throttle Body
Fuel Injection Throttle Body- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
12 Throttle Bodies found

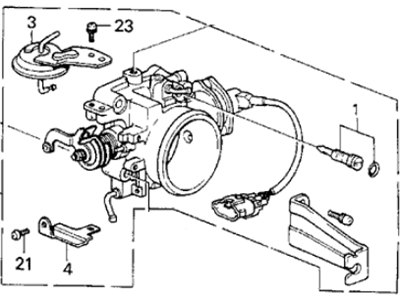

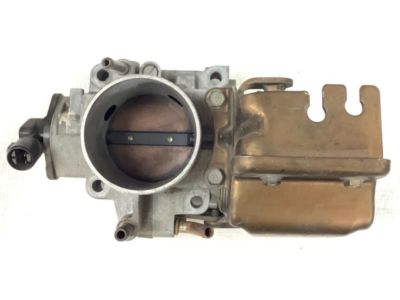

Acura Legend Throttle Body Assembly
Part Number: 16400-PX9-A00$455.76 MSRP: $650.90You Save: $195.14 (30%)Ships in 1-3 Business Days
Acura Legend Throttle Body
The Acura Legend's Throttle Body manages the amount of air entering the V6 engine. In response to driver input on the accelerator pedal, air begins to flow into the engine. The Powertrain Control Module perceives this airflow and adds fuel to create a compatible mixture for combustion, allowing for smooth acceleration. The Throttle Body Injection unit in the earlier Legend versions incorporated the use of a cable-attached Throttle Body, where one or two injectors were placed above the butterfly valve, which offered an inexpensive alternative to carburetors. When the pedal gets pressed, the plate moves open, extra air still rushes in, and the sensors urge the computer to widen the injector pulse width. Subsequent Acura sedans employed multi-port injection, whereby the Throttle Body controlled only air and separate rail injectors handled the fuel, while an Idle Air Control passage kept rpm steady. The newer versions introduced a Throttle Position Sensor and, in more recent years, a complete Electronic Throttle Control that replaced the cable with an electric motor for quicker response and integration with traction aids. Cleaning the unit can also stabilize the idle, but due to shifting in design, the shaft gets worn to the extent where the whole assembly has to be changed in older Acura Legend cars. For those who have an Acura Legend, it is important to understand the Throttle Body. Whether it's the original cable style or the newer motor-driven one, it is imperative to ensure crisp throttle response.
We provide a broad range of OEM Acura Legend Throttle Body at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.
Acura Legend Throttle Body Parts Questions & Experts Answers
- Q: How to check and service the throttle body on an Acura Legend?A:Check the throttle body by locating and disconnecting the vacuum hose mounted on the top of the throttle body, and connecting to a vacuum gauge. Warm the engine up till the dropping the needle on a vacuum gauge starts the cooling fan running twice. If the gauge isn't indicating vacuum when lightly opened from idle verify and if so check for clogs and clean with carburetor cleaner as needed. Check throttle cable and valve for grime build up, unstick the throttle cable and valve if they stick or bind, clean or replace throttle body as required. Disconnect the negative battery terminal, remove the air duct, throttle angle sensor connector and vacuum hoses connector and remove four mounting nuts to loosen the throttle body from the cylinder head. Installation is in the reverse order and carefully adjusted Accelerator Cable. Check vacuum lines for leaks or damage on the throttle control system, disconnect the hose from the dashpot diaphragm, apply vacuum to it and observe the throttle slow closing. Replace the dash pot check valve and retest if vacuum holds or releases quickly. For 1988, 1989 Integras warm engine, connect tachometer, check stalling speed and adjust. If you don't get over speed, check the vacuum gauge for backing up, or changing in the hose while the engine speed remains unchanged and replace the dashpot if vacuum is passed. Next, check and make any necessary idle speed adjustments.
