How to remove and install the Air Duct and Air Filter Box on an Acura MDX?

Disconnect the PCV fresh air inlet hose from the Air Duct. Clearly label any other cables and hoses that are attached or connected to the Air Duct, then detach or disconnect them and set them aside. Disconnect the left end of the Air Duct from the air filter box. Loosen the hose clamp that secures the Air Duct to the throttle body. Remove the Air Duct. If you removed the Air Duct just to access some other component(s) skip this. But if you're planning to replace the Air Duct itself, or either of the small resonators attached to the duct, loosen the hose clamp(s) and remove the resonator(s). Installation is the reverse of removal. Remove the Air Duct. On 2001 and 2002 Acura and 2003 and 2004 Honda models, detach the cruise control cable clip from the air filter box. Remove the air filter box mounting bolts and remove the air filter box. Inspect the condition of the air filter box insulator(s). if an insulator is cracked, torn or otherwise deteriorated, replace it. Installation is the reverse of removal. The resonator, which is used on 2003 and later Acura and 2005 and later Honda models, is located below and ahead of the air filter box, in the void behind the left corner of the front bumper cover and in front of the left front wheel well. Raise the front of the vehicle and place it securely on jackstands. Remove the front bumper cover. Remove the side branch tube from the resonator. Remove the resonator mounting bolts and remove the resonator. Installation is the reverse of removal. For 2007 Acura models, remove the air filter box. Remove the battery. Remove the front bumper cover. Remove the left headlight housing. Remove the two clips that secure the small plastic cover and remove the cover. Remove the two resonator mounting bolts and remove the resonator. Installation is the reverse of removal.

Genuine Acura MDX Air Filter Box

Air Filter Housing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Air Filter Boxs found

View related parts

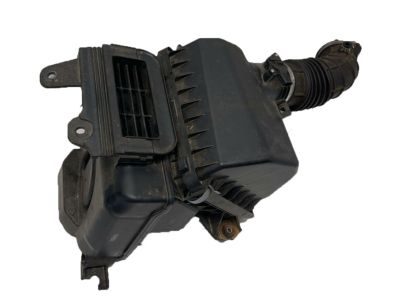

Acura MDX Case Set Air Cleaner
Part Number: 17244-RYE-S10
$62.74 MSRP: $87.50
You Save: $24.76 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Set, Air/C Case ; Air Cleaner Body; Air Cleaner Body, Lower Housing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

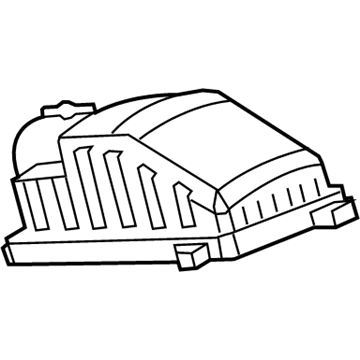

Acura MDX Set, Air Cleaner Case
Part Number: 17201-61A-A00
$221.17 MSRP: $315.87
You Save: $94.70 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: SET, AIR/C CASE; Air Box
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

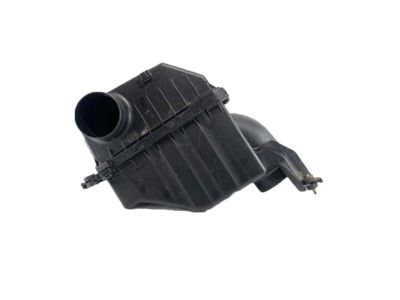

Acura MDX Air Intake Cleaner Filter Box
Part Number: 17211-RYE-A10
$45.29 MSRP: $63.17
You Save: $17.88 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover Complete, Air Conditioner; Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

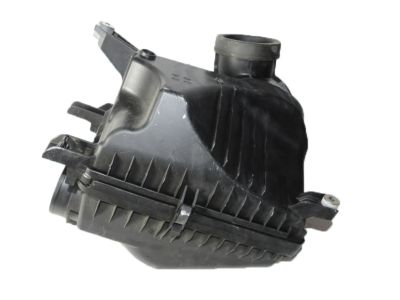

Acura MDX Air Cleaner Case Set
Part Number: 17244-5J6-A10
$36.75 MSRP: $51.26
You Save: $14.51 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Case Set, Air Cleaner ; Air Cleaner Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

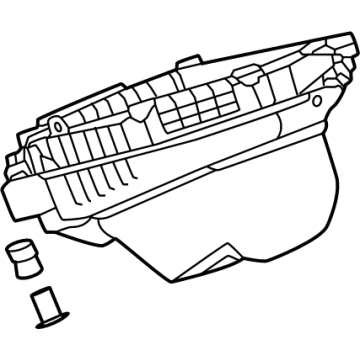

Acura MDX Air Cleaner Cover
Part Number: 17211-5J6-A00
$75.54 MSRP: $105.98
You Save: $30.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

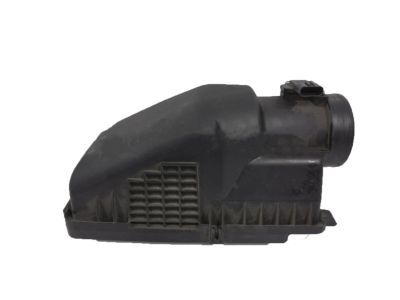

Acura MDX Air Cleaner Cover
Part Number: 17211-5J6-A10
$20.32 MSRP: $28.34
You Save: $8.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover, Air Cleaner
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

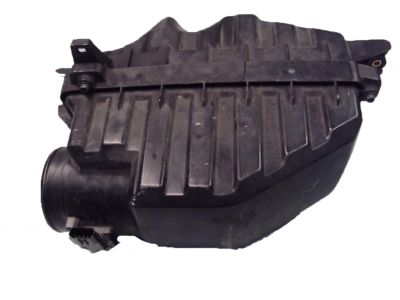

Acura MDX Air Cleaner Case Set
Part Number: 17245-PGK-A00
$96.33 MSRP: $135.15
You Save: $38.82 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Case Set, Air Cleaner ; Air Cleaner Body; Air Cleaner Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

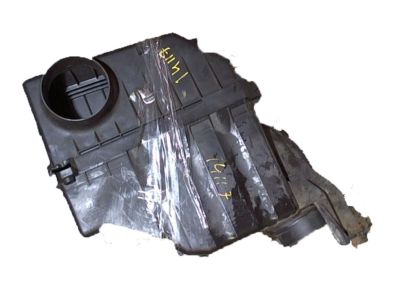

Acura MDX Air Cleaner Filter Box Case Assembly
Part Number: 17244-5J6-A20
$36.75 MSRP: $51.26
You Save: $14.51 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Case Set, Air Cleaner; Air Cleaner Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Cover
Part Number: 17211-RYE-A00
$82.08 MSRP: $115.14
You Save: $33.06 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Cover
Part Number: 17211-PGK-A00
$89.43 MSRP: $108.42
You Save: $18.99 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover, Air Cleaner; Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Cover Assembly , Air Cleaner
Part Number: 17210-61A-A00
$51.22 MSRP: $71.43
You Save: $20.21 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover Assembly , Air/C; Upper Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Cover
Part Number: 17211-5J6-A20
$20.32 MSRP: $28.34
You Save: $8.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover, Air Cleaner; Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Cover
Part Number: 17211-5WS-A00
$23.33 MSRP: $32.53
You Save: $9.20 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER, AIR CLEANER; Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Cover
Part Number: 17211-5MH-A00
$20.29 MSRP: $28.31
You Save: $8.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover, Air Cleaner; Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Cover
Part Number: 17210-61B-A01
$51.90 MSRP: $72.38
You Save: $20.48 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: COVER, AIR CLEANER; Top Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Case Set, Air Cleaner
Part Number: 17201-61B-A01
$217.53 MSRP: $310.67
You Save: $93.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CASE SET, A/CLNR; Lower Housing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Intake Cleaner Filter Box
Part Number: 17244-RYE-A00
$98.75 MSRP: $138.53
You Save: $39.78 (29%)
Product Specifications
- Other Name: Case Set, Air Cleaner ; Air Cleaner Body; Air Cleaner Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Air Cleaner Case Set
Part Number: 17244-5J6-S00
$145.85 MSRP: $206.00
You Save: $60.15 (30%)
Product Specifications
- Other Name: Case Set, Air Cleaner ; Air Cleaner Body; Air Cleaner Body
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura MDX Air Filter Box

The engine of your Acura MDX is protected by the Air Filter Box, which receives air in a sealed manner. It then facilitates the entry of air through a filter that eliminates dust, sand, and other abrasives before they can harm any internal parts. The early Acura MDX models were equipped with a clipped two-piece plastic Air Filter Box, whereas later model years upgraded to a rigid molded Air Filter Box featuring resonance pockets that reduce intake noise and enhance sealing. Air enters the intake manifold through both housings, passing through the filter, which protects the engine's pistons, valves, and cylinder walls from damage. It will limit the entry of metal particles in the engine oil to keep the bearings protected while saving power. Routine servicing is easy with a simple unlatching of the cover, swapping the panel, and restoring strong airflow in a few minutes. The MDX boasts a generous volume Air Filter Box, which allows the V6 engine to breathe easier whether it is crawling through congested city traffic or towing on dirt trails. Regular checks noted in your Acura maintenance schedule help the vehicle hold torque and avoid costly wear. To keep the Acura SUV competitive, the MDX depends on an Air Filter Box that features a tight seal that feeds massive amounts of clean air to the engine.

We provide a broad range of OEM Acura MDX Air Filter Box at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura MDX Air Filter Box Parts Questions & Experts Answers

Air Cleaner Case Set
17245-PGK-A00
Q: How to remove and install the Air Duct and Air Filter Box on an Acura MDX?
A:
Disconnect the PCV fresh air inlet hose from the Air Duct. Clearly label any other cables and hoses that are attached or connected to the Air Duct, then detach or disconnect them and set them aside. Disconnect the left end of the Air Duct from the air filter box. Loosen the hose clamp that secures the Air Duct to the Throttle Body. Remove the Air Duct. If you removed the Air Duct just to access some other component(s) skip this. But if you're planning to replace the Air Duct itself, or either of the small resonators attached to the duct, loosen the hose clamp(s) and remove the resonator(s). Installation is the reverse of removal. Remove the Air Duct. On 2001 and 2002 Acura and 2003 and 2004 Honda models, detach the cruise control cable clip from the air filter box. Remove the air filter box mounting bolts and remove the air filter box. Inspect the condition of the air filter box insulator(s). if an insulator is cracked, torn or otherwise deteriorated, replace it. Installation is the reverse of removal. The resonator, which is used on 2003 and later Acura and 2005 and later Honda models, is located below and ahead of the air filter box, in the void behind the left corner of the front bumper cover and in front of the left front wheel well. Raise the front of the vehicle and place it securely on jackstands. Remove the front bumper cover. Remove the side branch tube from the resonator. Remove the resonator mounting bolts and remove the resonator. Installation is the reverse of removal. For 2007 Acura models, remove the air filter box. Remove the battery. Remove the front bumper cover. Remove the left headlight housing. Remove the two clips that secure the small plastic cover and remove the cover. Remove the two resonator mounting bolts and remove the resonator. Installation is the reverse of removal.
