Genuine Acura MDX Shock Absorber

Acura MDX Shock Absorber Parts Questions & Answers

• Right Front Damper Unit
  51605-S3V-305
  Q: How do you remove a strut?

  A: To remove the strut, loosen the wheel lug nuts, raise the vehicle, and remove the wheel. Disconnect the stabilizer bar link and brake hose bracket from the strut. Detach the ABS speed sensor wiring harness and remove the strut-to-knuckle nuts and bolts. Separate the strut from the Steering Knuckle and remove the strut and spring assembly. Mark the struts as left or right if both are being removed. Inspect the strut for damage and the coil spring for chips or cracks. If issues are found, disassemble the strut. To install, guide the assembly into the fender well and secure with nuts. Reattach the brake hose bracket, speed sensor wiring harness bracket, and stabilizer link. Install the wheel, lower the vehicle, and tighten the lug nuts. Finally, check and adjust the front wheel alignment if necessary.
• Right Front Damper Unit
  51605-S3V-305
  Q: How to disassemble and reassemble a strut and coil spring assembly?

  A: If your struts or coil springs show wear, consider all options before starting work. Strut assemblies can't be serviced and must be replaced if faulty. You may find complete strut assemblies on an exchange basis, saving time and effort. Before disassembly, check part costs and availability. Remove the strut and spring assembly, mount it in a vise, and use a spring compressor to relieve pressure. Unscrew the thrust bearing retaining nut and remove the upper mount. Inspect the bearing and rubber mount for damage and replace if needed. Remove the upper spring seat and insulator, checking for damage. Lift the compressed spring from the assembly. Remove the dust cover plate and dust cover, then slide off the rubber bump stop and check for deterioration. To reassemble, extend the damper rod and install the rubber bump stop, dust cover, and dust cover plate. Place the compressed coil spring onto the lower seat of the damper, install the upper insulator and spring seat, followed by the bearing and suspension support. Install the washer and nut, tighten it, remove the spring compressor tool and install the strut/spring assembly.

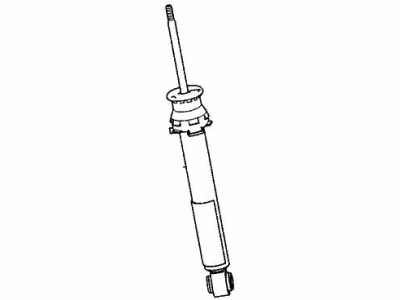

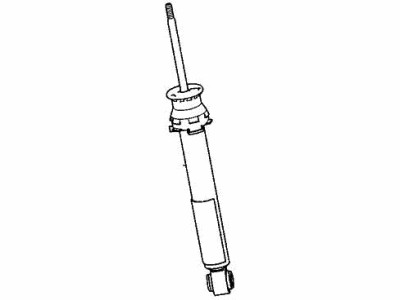

• Rear Shock Absorber
  52610-S3V-305
  Q: How to replace the rear shock absorbers on Acura MDX with active damper control?

  A: On 2007 Acura MDX models with active damper control, it is recommended to consult an authorized dealership or qualified repair facility for rear shock absorber replacement. Before starting the removal process, loosen the rear wheel lug nuts and secure the front wheels with chocks. Then, raise the rear of the vehicle and support it on jack stands. Remove the rear wheels. For Pilot and MDX models, support the lower arm B with a floor jack placed under the coil spring pocket. Remove the stabilizer link, ABS speed sensor, and wire harness from the lower arm B. Remove the shock absorber upper mounting bolt and the shock absorber lower mounting nut and washer. If necessary, compress the shock and remove it. For Ridgeline models, special tools are required to compress the shock/coil spring assembly, so it is recommended to have the rear shocks installed by an authorized dealership or qualified repair facility. Remove the lower Control Arm B and the three flange bolts from the shock/coil spring assembly upper mounting base. Lower the shock/coil spring assembly from the vehicle. To install the shock absorber, reverse the removal procedure. For all models, make sure to tighten the mounting fasteners to the specified torque. Repeat the procedure for the other rear shock absorber. Finally, install the wheels and lug nuts, lower the vehicle, and tighten the lug nuts to the specified torque.
