How to Remove a Fuel Pump/Fuel Gauge Sending Unit from a Acura TL?

Disconnect the negative battery terminal and relieve fuel pressure. Remove the back seat cushion and fuel pump access cover. Unplug the fuel pump's electrical connector and detach fuel lines. Remove the fuel pump assembly and disconnect its electrical connector. Use pliers to remove hose clamps and the fuel inlet filter. Separate the pump from its bracket. Disconnect the electrical connector from the fuel level sensor/fuel gauge unit and set the supply line aside. Remove the unit locknut and the unit from the tank. Install a new gasket, align the index mark, and tighten the locknut. Reverse the process for installation.

How to Replace a Fuel Pump and Fuel Level Sending Unit on Acura TL?

Depressurize the fuel system and disconnect the battery. Remove the fuel pump and fuel level sensor from the tank. Disconnect the fuel level sensor and separate it from the pump bracket. Detach the sensor from the filter housing and remove the case. Disconnect the fuel supply line and discard the 0-ring. Disconnect the pump wiring and ground wire. Remove the pressure regulator housing, ground wire, retaining clip, and 0-rings. Inspect the spacer and filter screen. Remove the fuel pump and discard the 0-ring. Remove the suction filter and clean the strainer. Reassemble the pump, filter, and fuel level sensor with new 0-rings and retainer clip. Reconnect the battery, start the engine, and check for leaks.

How to verify fuel tank and fuel pump operation in Acura TL?

To inspect fuel levels and pump operation, turn the ignition ON and listen for a noise. If inaudible, listen at the fuel filler neck with an assistant. For 2003 and earlier models, use a fuel pressure gauge with 48 psi for 1999-2000 models, and 55 psi for later models. Detach the fuel rail's pulsation damper, link your fuel pressure testing kit, and attach the gauge. Then, start the engine, warm it up, and then look over the fuel pressure against the range with the vacuum hose connected and disconnected and if the pressure doesn't change with hose manipulation, check for hose or regulator faults.

Genuine Acura TL Fuel Pump

Gas Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Fuel Pumps found

View related parts

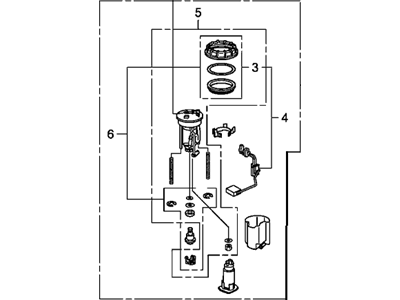

Acura TL Fuel Pump Module Assembly
Part Number: 17045-SEP-A01
$347.61 MSRP: $496.45
You Save: $148.84 (30%)
ADD TO CART
Product Specifications
- Other Name: Module Assembly, Fuel Pump; Fuel Pump, Fuel Pump Assembly
- Replaces: 17045-SEP-A00
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

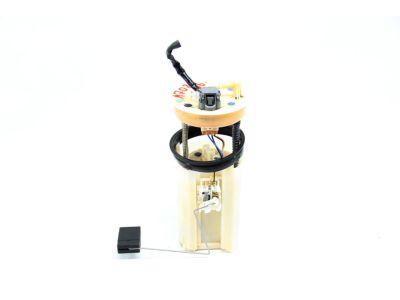

Acura TL Fuel Pump Set
Part Number: 17040-S3M-A00
$361.72 MSRP: $516.60
You Save: $154.88 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Set, Fuel; Fuel Pump
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

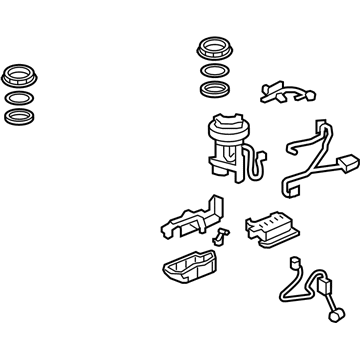

Acura TL Fuel Pump Module Set
Part Number: 17045-TK4-A00
$434.54 MSRP: $620.60
You Save: $186.06 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly, Fuel Pump; Fuel Pump, Fuel Pump Assembly
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Fuel Pump Module Assembly
Part Number: 17045-SEP-A50
$371.23 MSRP: $530.18
You Save: $158.95 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly, Fuel Pump; Fuel Pump, Fuel Pump Assembly
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

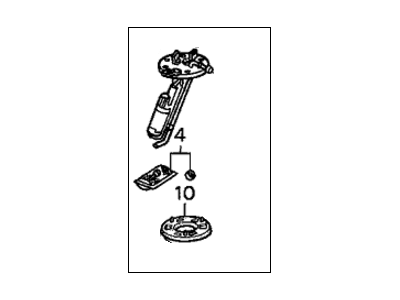

Acura TL Fuel Pump Set
Part Number: 17040-S84-A02
$361.72 MSRP: $516.60
You Save: $154.88 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Set, Fuel; Fuel Pump
- Replaces: 17040-S84-A01, 17040-S84-A00
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

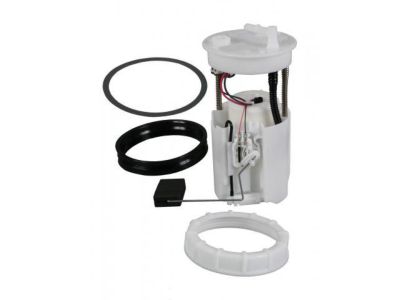

Acura TL Fuel Pump Module Set
Part Number: 17045-TA6-A00
$432.32 MSRP: $617.42
You Save: $185.10 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Set,Fuel Pump
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

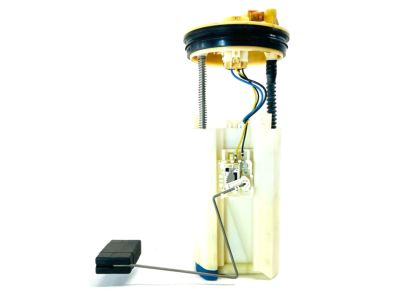

Acura TL Fuel Pump Module Set
Part Number: 17045-TK5-A01
$520.35 MSRP: $743.15
You Save: $222.80 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Set,Fuel Pump ; Fuel Pump Assembly
- Replaces: 17045-TK5-A00
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

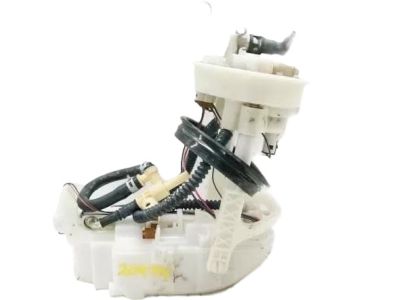

Acura TL Fuel Pump Assembly Set
Part Number: 17045-TK5-A11
$510.52 MSRP: $729.10
You Save: $218.58 (30%)
Product Specifications
- Other Name: Set, Fuel Pump Assembly; Fuel Pump, Fuel Pump Assembly
- Position: Driver Side
- Replaces: 17045-TK5-A10
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Fuel Pump Set
Part Number: 17040-SW5-A30
Product Specifications
- Other Name: Pump Set, Fuel; Fuel Pump
- Replaced by: 17040-SW5-A32
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Fuel Pump Set
Part Number: 17040-SW5-A31
Product Specifications
- Other Name: Pump Set, Fuel
- Replaced by: 17040-SW5-A32
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura TL Fuel Pump Set
Part Number: 17040-SW5-A32
Product Specifications
- Other Name: Pump Set, Fuel; Fuel Pump
- Replaces: 17040-SW5-A31, 17040-SW5-A30
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura TL Fuel Pump

The Fuel Pump in Acura TL automobiles serves the function of providing the fuel that combusts in the motor smoothly and efficiently. It carries fuel from the tank to the carburetor or fuel injectors: electrical pumps are incorporated in fuel injection. Pump for the fuel is mechanical and it uses the camshaft to pump fuel to carburetors. It has also identified that engines' demands can be met by vehicles' high flow mechanical, in-tank or external electric fuel pumps found in the Acura TL models. Performance fuel pumps are flow rated in GPH or LPH and depending on an engine's need, there are variety of products available. While mechanical pumps have been used-until recently electric pumps give higher pressures and efficiency controlled by ECUs for safety and fuel.

We provide a broad range of OEM Acura TL Fuel Pump at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura TL Fuel Pump Parts Questions & Experts Answers

Fuel Pump Set
17040-S3M-A00
Q: How to Remove a Fuel Pump/Fuel Gauge Sending Unit from a Acura TL?
A:
Disconnect the negative battery terminal and relieve fuel pressure. Remove the back seat cushion and fuel pump access cover. Unplug the fuel pump's electrical connector and detach fuel lines. Remove the fuel pump assembly and disconnect its electrical connector. Use pliers to remove hose clamps and the fuel inlet filter. Separate the pump from its bracket. Disconnect the electrical connector from the fuel level sensor/fuel gauge unit and set the supply line aside. Remove the unit locknut and the unit from the tank. Install a new gasket, align the index mark, and tighten the locknut. Reverse the process for installation.
Fuel Pump Set
17040-S3M-A00
Q: How to Replace a Fuel Pump and Fuel Level Sending Unit on Acura TL?
A:
Depressurize the fuel system and disconnect the battery. Remove the fuel pump and fuel level sensor from the tank. Disconnect the fuel level sensor and separate it from the pump bracket. Detach the sensor from the filter housing and remove the case. Disconnect the fuel supply line and discard the 0-ring. Disconnect the pump wiring and ground wire. Remove the pressure regulator housing, ground wire, retaining clip, and 0-rings. Inspect the spacer and filter screen. Remove the fuel pump and discard the 0-ring. Remove the suction filter and clean the strainer. Reassemble the pump, filter, and fuel level sensor with new 0-rings and retainer clip. Reconnect the battery, start the engine, and check for leaks.
Fuel Pump Set
17040-S3M-A00
Q: How to verify fuel tank and fuel pump operation in Acura TL?
A:
To inspect fuel levels and pump operation, turn the ignition ON and listen for a noise. If inaudible, listen at the fuel filler neck with an assistant. For 2003 and earlier models, use a fuel pressure gauge with 48 psi for 1999-2000 models, and 55 psi for later models. Detach the Fuel Rail's pulsation damper, link your fuel pressure testing kit, and attach the gauge. Then, start the engine, warm it up, and then look over the fuel pressure against the range with the vacuum hose connected and disconnected and if the pressure doesn't change with hose manipulation, check for hose or regulator faults.
