Question 1

How do rear view mirrors on an Acura Integra utilize motors for adjustments and what steps should be taken to troubleshoot them?

Accepted Answer

Electric rear view mirrors utilize two motors for adjustments, It includes one for vertical movement and one for horizontal movement. The left or the right mirror is directed by the control switch with a selector to receive voltage. With the engine OFF and example ON, roll down the windows and switch the mirror control switch through all functions for both mirrors. Listen for the sound of the electric motors-just their sound and not the movement of the mirror glass if you can hear them, but the mirror glass does not move-this is probably an issue with the internal drive mechanism. If you don't hear anything from the mirrors, check the fuse. Check the voltage at the switch without removal of the switch if the fuse is intact, then remove the mirror control switch without disconnecting the wires when turn the ignition ON. Good, 1 terminal should have voltage in one case with no voltage, check that the wiring if not between the fuse panel and switch is OK for cuts or short circuits. For continuity tests, disconnect the switch and test for continuity in all operating positions; the switch must be replaced if continuity is not found if voltage is present. Find the wire that goes to ground and reattach the switch. Connect this wire to ground with a jumper wire, switch it on and see if the mirror works normally if it does, repair the faulty ground connection. If the mirror still will not operate, remove the cover and check for voltage at the mirror wires with a test light, and the ignition should be on, and the selector switch set properly. Expect voltage on one (or both) of the switch to mirror wires for all mirror switch positions except neutral. If voltage is not there in any location, scan the wiring between the mirror and control switch for being not right. Remove the mirror and test it off the vehicle with jumper wires, replacing it if it fails this test if voltage is present.

Question 2

What are the troubleshooting steps for rear view mirrors that are not functioning properly on an Acura MDX?

Accepted Answer

Most electric rear view mirrors use two motors to move the glass; one for up and down adjustments and one for left-right adjustments. During mirror adjustment, the power mirror adjustment switch sends voltage to the left or right side mirror. With the ignition key turned to ON (engine not running), operate the mirror adjustment switch through all of its functions (left-right and up-down) for both the left and right side mirrors. Listen carefully for the sound of the electric motors running in the mirrors. If you can hear the motors but the mirror glass doesn't move, there's a problem with the drive mechanism inside the mirror. If the mirrors do not operate and no sound comes from the mirrors, check the fuse. If the fuse is OK, remove the power mirror adjustment switch. Have the switch continuity checked by a dealership service department or other qualified automobile repair facility. Test the ground connections. If the mirror still doesn't work, remove the mirror and check the wires at the mirror for voltage. If there is no voltage in any switch position, check the circuit between the mirror and the adjustment switch for opens and shorts. If there's voltage, remove the mirror and test it off the vehicle with jumper wires. Replace the mirror if it fails this test.

Question 3

What is the operation of electric rear view mirrors and what actions are needed if they fail to adjust properly on an Acura TL?

Accepted Answer

Most electric rear view mirrors use two motors to move the glass; one for up-and-down adjustments and one for left-right adjustments. During mirror adjustment, the power mirror adjustment switch sends voltage to the left or right side mirror. With the ignition key turned to ON (engine not running), operate the mirror adjustment switch through all of its functions (left-right and up-down) for both the left and right side mirrors. Listen carefully for the sound of the electric motors running in the mirrors. If you can hear the motors but the mirror glass doesn't move, there's a problem with the drive mechanism inside the mirror. If the mirrors do not operate and no sound comes from the mirrors, check the fuse. If the fuse is OK, remove the power mirror adjustment switch and have the switch continuity checked by a dealership service department or other qualified automobile repair facility. Inspect the ground connections to ensure they are tight and corrosion-free. If the mirror still doesn't work, remove the mirror and check the wires at the mirror for voltage. If there is no voltage in any switch position, check the circuit between the mirror and the adjustment switch for opens and shorts. If there's voltage, remove the mirror and test it off the vehicle with jumper wires; if the mirror fails this test, replace it.

Genuine Acura Mirror

2268 Mirrors found

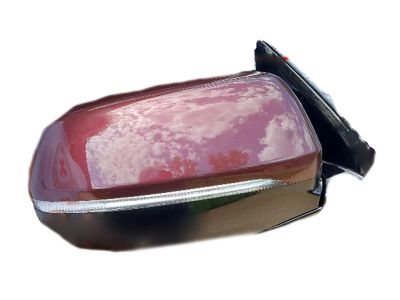

Acura MIRROR, R. DOOR

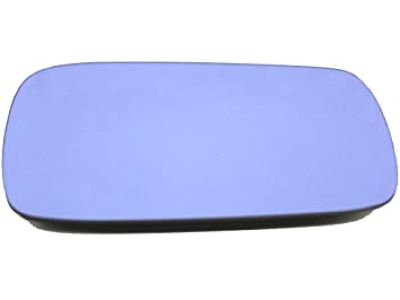

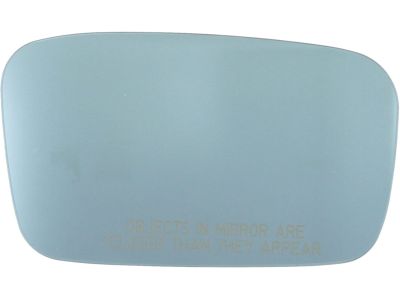

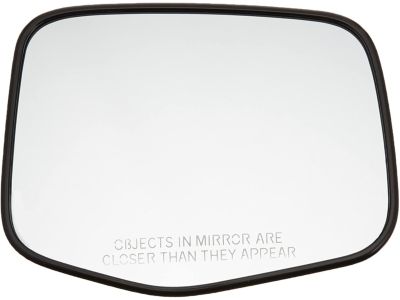

Acura Door-Rear Side View Mirror Glass Right

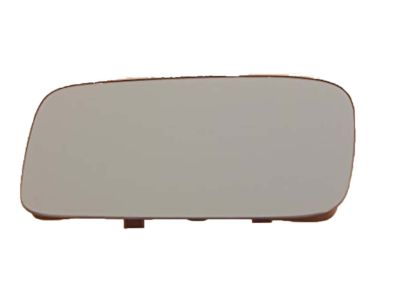

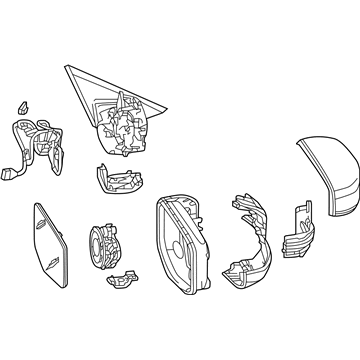

Acura Passenger Side Mirror Sub-Assembly (Heated)

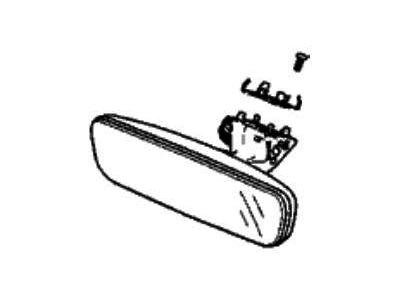

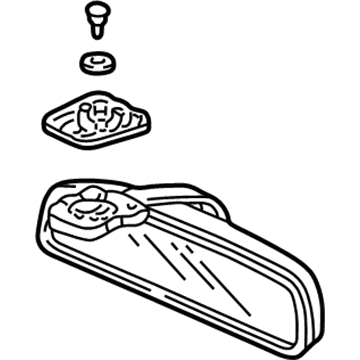

Acura Rear View Mirror Assembly (Automatic Day/Night)

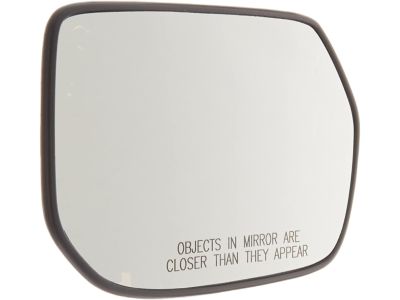

Acura Driver Side Mirror Sub-Assembly (Heated)

Acura Mirror Sub-Assembly, Driver Side (Heated)

Acura Mirror Sub-Assy., R.

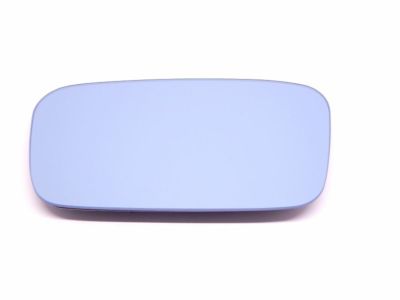

Acura Mirror Sub-Assembly, Left (Heated) (Flat)

Acura Door Side Rear View-Mirror Assy Right

Acura Driver Side Door Mirror Assembly (White Diamond Pearl) (R.C.) (Heated)

Acura Passenger Side Door Mirror Assembly (Modern Steel Metallic)

Acura Passenger Side Mirror

Acura MIRROR, R. DOOR

Acura Door Mirr (White Diamond Pearl)

Acura Driver Side Mirror Glass (Flat) (Heated)

Acura Passenger Side Mirror Sub-Assembly

Acura Passenger Side Door Mirror (Crystal Black Pearl)

Acura Passenger Side Door Mirror Assembly (Fathom Blue Pearl)

Acura Mirror Set (R1016)

Acura Passenger Side Door (White Diamond Pearl) Mirror Assembly
