How to troubleshoot a faulty compressor clutch engagement on Acura Integra?

If the compressor clutch does not engage, the relay may be faulty. Remove the relay from the engine compartment fuse box and check it. There should be continuity between the terminals with power and ground connected to terminals and no continuity with power disconnected. If the relay is ok, check the voltage between the terminals of the relay socket and a good ground to make sure the relay is receiving power. If it isn't receiving power, there is an open circuit that must be repaired. After determining that the relay is receiving power, connect a jumper wire between certain terminals in the relay socket and listen for a clicking sound from the compressor clutch. If the compressor clutch doesn't click, remove the jumper wire, unplug the compressor clutch connector and check for continuity of the red wire that runs between the relay socket and the compressor clutch connector. If there is an open, repair it. If there is continuity, check the compressor clutch for damage. Unplug the air conditioning low pressure switch. Check for voltage between the pressure switch connector and a good ground with the ignition switch On. There should be battery voltage on certain wires depending on the model. If there is no voltage, there is an open. If there is voltage, turn off the ignition and check for continuity between the terminals of the pressure switch itself. If there is none, there is a problem with the switch or the system pressure.

Genuine Acura Integra A/C Clutch

Air Conditioning Clutch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 A/C Clutches found

View related parts

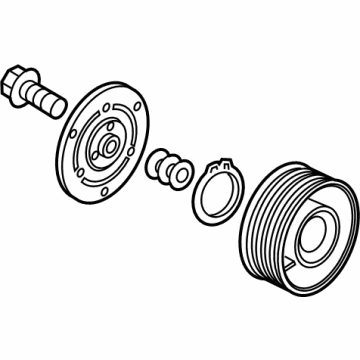

Acura Integra Stator Set
Part Number: 38924-6B2-A01
$62.08 MSRP: $86.58
You Save: $24.50 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch & Pulley, Clutch Coil, Coil, Stator
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

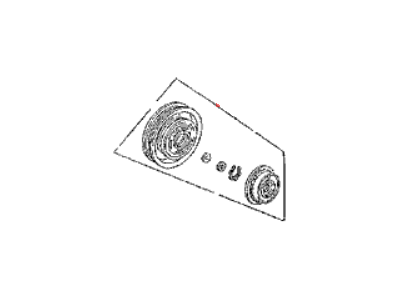

Acura Integra Washer Plate Set
Part Number: 38912-PH1-N01
$12.07 MSRP: $16.83
You Save: $4.76 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Set, Washer
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

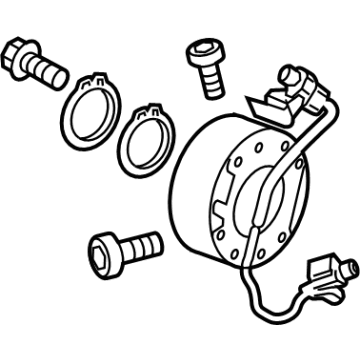

Acura Integra Clutch Set
Part Number: 38900-66V-J01
$123.58 MSRP: $174.55
You Save: $50.97 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch & Pulley
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

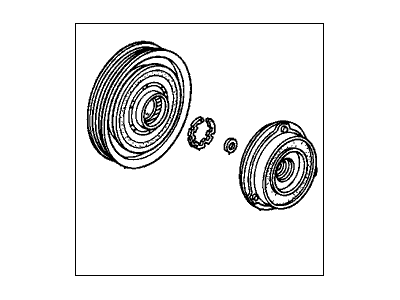

Acura Integra Clutch Set
Part Number: 38900-PR3-023
$158.40 MSRP: $223.74
You Save: $65.34 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 38900-P30-013
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set
Part Number: 38900-64A-A01
$107.31 MSRP: $151.57
You Save: $44.26 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch, Clutch & Pulley
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Coil Set
Part Number: 38924-64A-A01
$52.56 MSRP: $73.30
You Save: $20.74 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch Coil, Coil
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set
Part Number: 38900-PJ1-N01
Product Specifications
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set
Part Number: 38900-PR4-N01
Product Specifications
- Other Name: Clutch
- Replaces: 38900-PR4-A01, 38900-PR4-A02
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set
Part Number: 38900-P72-003
Product Specifications
- Other Name: Clutch
- Replaces: 38900-P75-003
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set
Part Number: 38900-P75-003
Product Specifications
- Replaced by: 38900-P72-003
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set
Part Number: 38900-P73-003
Product Specifications
- Other Name: Clutch
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch, Magnetic
Part Number: 38900-P61-A01
Product Specifications
- Replaced by: 38900-PR3-013
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Clutch Set, Magnet
Part Number: 38900-PJ1-003
Product Specifications
- Other Name: Clutch
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura Integra A/C Clutch

We provide a broad range of OEM Acura Integra A/C Clutch at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura Integra A/C Clutch Parts Questions & Experts Answers

Clutch Set
38900-P73-003
Q: How to troubleshoot a faulty compressor clutch engagement on Acura Integra?
A:
If the compressor clutch does not engage, the relay may be faulty. Remove the relay from the engine compartment fuse box and check it. There should be continuity between the terminals with power and ground connected to terminals and no continuity with power disconnected. If the relay is ok, check the voltage between the terminals of the relay socket and a good ground to make sure the relay is receiving power. If it isn't receiving power, there is an open circuit that must be repaired. After determining that the relay is receiving power, connect a jumper wire between certain terminals in the relay socket and listen for a clicking sound from the compressor clutch. If the compressor clutch doesn't click, remove the jumper wire, unplug the compressor clutch connector and check for continuity of the red wire that runs between the relay socket and the compressor clutch connector. If there is an open, repair it. If there is continuity, check the compressor clutch for damage. Unplug the air conditioning low pressure switch. Check for voltage between the pressure switch connector and a good ground with the ignition switch On. There should be battery voltage on certain wires depending on the model. If there is no voltage, there is an open. If there is voltage, turn off the ignition and check for continuity between the terminals of the pressure switch itself. If there is none, there is a problem with the switch or the system pressure.
