How do you replace an alternator on Acura Legend?

Detach the cable from the negative terminal of the battery, then mark and detach the electrical connectors from the alternator. Loosen the alternator adjusting bolt and pivot bolt, detach the drivebelt, remove the bolts, and lift out the alternator. If replacing the alternator, take the old one when purchasing a replacement unit, ensuring the new or rebuilt unit looks identical to the old one, with matching terminals in number, size, and location, as well as identical identification numbers stamped into the housing or printed on a tag. Many new or rebuilt alternators may not have a pulley installed, so switching the pulley from the old unit to the new one may be necessary, and it's advisable to check the shop's policy regarding pulleys, as some may perform this service for free. Installation follows the reverse order of removal, and after installation, adjust the drivebelt tension and check the charging voltage to verify proper operation of the alternator.

Genuine Acura Legend Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Alternators found

View related parts

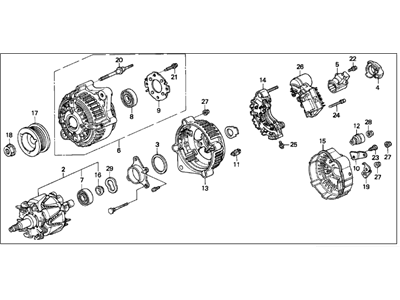

Acura Legend Alternator Assembly (Cjk46) (Denso)
Part Number: 31100-PH7-004
Product Specifications
- Replaced by: 31100-PH7-024
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Legend Alternator Assembly (Cjk46) (Denso)
Part Number: 31100-PH7-014
Product Specifications
- Replaced by: 31100-PH7-024
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Legend Alternator Assembly (Cjk46) (Denso)
Part Number: 31100-PH7-024
Product Specifications
- Replaces: 31100-PH7-014, 31100-PH7-004
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

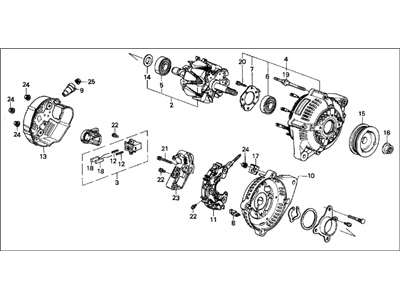

Acura Legend Alternator Assembly (Denso)
Part Number: 31100-PP8-014
Product Specifications
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts

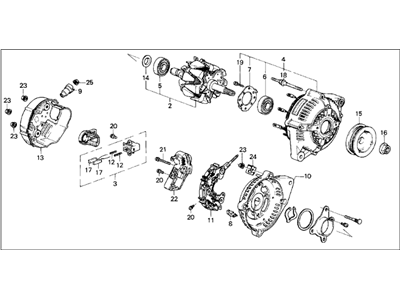

Acura Legend Alternator Assembly (Clb18) (Denso)
Part Number: 31100-PY3-003
Product Specifications
- Replaced by: 31100-PY3-013
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Legend Alternator Assembly (Clb18) (Denso)
Part Number: 31100-PY3-013
Product Specifications
- Replaces: 31100-PY3-003
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura Legend Alternator

We provide a broad range of OEM Acura Legend Alternator at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura Legend Alternator Parts Questions & Experts Answers

Alternator Assembly (Cjk46) (Denso)
31100-PH7-004
Q: How do you replace an alternator on Acura Legend?
A:
Detach the cable from the negative terminal of the battery, then mark and detach the electrical connectors from the alternator. Loosen the alternator adjusting bolt and pivot bolt, detach the drivebelt, remove the bolts, and lift out the alternator. If replacing the alternator, take the old one when purchasing a replacement unit, ensuring the new or rebuilt unit looks identical to the old one, with matching terminals in number, size, and location, as well as identical identification numbers stamped into the housing or printed on a tag. Many new or rebuilt alternators may not have a pulley installed, so switching the pulley from the old unit to the new one may be necessary, and it's advisable to check the shop's policy regarding pulleys, as some may perform this service for free. Installation follows the reverse order of removal, and after installation, adjust the drivebelt tension and check the charging voltage to verify proper operation of the alternator.
