How is the Camshaft Removed on the Acura MDX?

To remove the camshaft, you must first drain the engine coolant and take off the valve covers and timing belt. Now, you should disconnect nuts from both ends of these bars, then ensure that they don't move. One should remove rocker arms and shafts, then check the camshaft endplay. If one is working on the front cylinder head, he/she has to take out a battery, battery tray, upper radiator hose, and EGR valve. For the rear one will have to detach the EVAP purge joint bracket. This will be followed by removing the cam retainer plate and with care slide the shaft out. Before doing it replace oil seal after checking this component carefully. Then clean it up, lubricate it, and put in back bringing a retainer plate along with it. Finally, assemble other parts together; adjust valves if there is a need to do so and make a test run of an engine to see if there are any leaks.

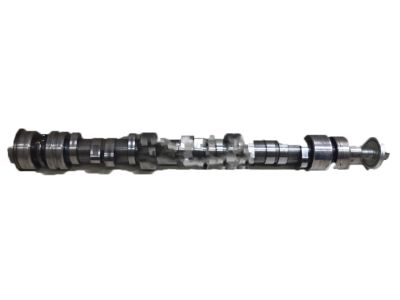

Genuine Acura MDX Camshaft

Cam

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

24 Camshafts found

View related parts
Acura MDX Rear Camshaft Complete
Part Number: 14200-RYE-A10
$302.95 MSRP: $432.67
You Save: $129.72 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft Complete , Rear; Camshaft
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Front Camshaft Complete
Part Number: 14100-RYE-A10
$303.44 MSRP: $433.37
You Save: $129.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft Complete , Front; Camshaft
- Position: Front
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Front
Part Number: 14100-RYE-A00
$375.20 MSRP: $535.85
You Save: $160.65 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Front
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Rear Camshaft
Part Number: 14200-RYE-A01
$370.24 MSRP: $528.77
You Save: $158.53 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft, Rear; Camshaft
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Front Camshaft Complete
Part Number: 14100-RGL-A00
$299.78 MSRP: $428.13
You Save: $128.35 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft Complete , Front; Camshaft
- Position: Front
- Replaces: 14100-RCA-A10, 14100-RCA-A00
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Rear
Part Number: 14200-5J6-A00
$302.01 MSRP: $431.32
You Save: $129.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Front
Part Number: 14100-5MR-A00
$302.01 MSRP: $431.32
You Save: $129.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Front
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Front
Part Number: 14100-5J6-A00
$302.01 MSRP: $431.32
You Save: $129.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Front
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Intake
Part Number: 14110-6S9-A00
$118.64 MSRP: $167.57
You Save: $48.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CAMSHAFT, IN.; Camshaft
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Exhaust
Part Number: 14120-6S9-A00
$118.71 MSRP: $167.67
You Save: $48.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CAMSHAFT, EX.; Camshaft
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Rear
Part Number: 14200-RLV-A00
$306.21 MSRP: $437.32
You Save: $131.11 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Rear
- Replaces: 14200-5J6-A20
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Front
Part Number: 14100-RLV-A00
$302.01 MSRP: $431.32
You Save: $129.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Front
- Replaces: 14100-5J6-A20
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Rear Camshaft Complete
Part Number: 14200-RGL-A00
$293.23 MSRP: $418.78
You Save: $125.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft Complete , Rear; Camshaft
- Position: Rear
- Replaces: 14200-RCA-A00, 14200-RCA-A10
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Exhaust
Part Number: 14220-6S9-A00
$117.98 MSRP: $166.63
You Save: $48.65 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CAMSHAFT, EX.; Camshaft
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Intake
Part Number: 14210-6S9-A00
$126.94 MSRP: $179.30
You Save: $52.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CAMSHAFT, IN.; Camshaft
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Rear
Part Number: 14200-5G5-H00
$470.27 MSRP: $671.62
You Save: $201.35 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Front
Part Number: 14100-5G5-H00
$470.27 MSRP: $671.62
You Save: $201.35 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Front
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Front
Part Number: 14100-P8E-L00
$318.30 MSRP: $454.58
You Save: $136.28 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Front
- Replaces: 14100-P8F-A01
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft, Rear
Part Number: 14200-5MR-A00
$306.21 MSRP: $437.32
You Save: $131.11 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura MDX Camshaft Component, Exhaust Right
Part Number: 14220-6S9-A01
$119.71 MSRP: $169.08
You Save: $49.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CAMSHAFT COMP, EX R; Camshaft
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

| Page 1 of 2 |Next >

1-20 of 24 Results

Acura MDX Camshaft

The Acura MDX Camshaft coordinates accurate valve timing to ensure that the SUV is breathing efficiently and providing balanced power. Positioned in synchrony with the crankshaft by either a chain or belt, the Camshaft rotates at half crank speed in the four-stroke engine, raising its eccentric lobes to open the intake and exhaust valves and then allowing spring force to close them. Earlier generations of the Acura MDX were designed around a single overhead cam layout that applied one Camshaft per cylinder head and rocker arms to actuate the valves, whereas later generations of the MDX use a double overhead cam design that has two Camshafts per cylinder head and bucket followers to separately control intake and exhaust events for better smooth high rpm operation. Each Camshaft must maintain perfect alignment with the crank, or else misfires would occur. The main difference between these styles comes from the valve actuation path, with SOHC using one Camshaft for both valve sets and DOHC splitting the job, which makes the engine breathing sharper and increases performance. Both designs are beneficial to help the Acura powerplant remain durable; however, a worn Camshaft throws combustion off and can be damaging to critical Acura MDX engine parts.

We provide a broad range of OEM Acura MDX Camshaft at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura MDX Camshaft Parts Questions & Experts Answers

Camshaft, Front
14100-RYE-A00
Q: How is the Camshaft Removed on the Acura MDX?
A:
To remove the camshaft, you must first drain the engine coolant and take off the Valve Covers and Timing Belt. Now, you should disconnect nuts from both ends of these bars, then ensure that they don't move. One should remove Rocker Arms and shafts, then check the camshaft endplay. If one is working on the front cylinder head, he/she has to take out a battery, battery tray, upper radiator hose, and EGR valve. For the rear one will have to detach the EVAP purge joint bracket. This will be followed by removing the cam retainer plate and with care slide the shaft out. Before doing it replace oil seal after checking this component carefully. Then clean it up, lubricate it, and put in back bringing a retainer plate along with it. Finally, assemble other parts together; adjust valves if there is a need to do so and make a test run of an engine to see if there are any leaks.
