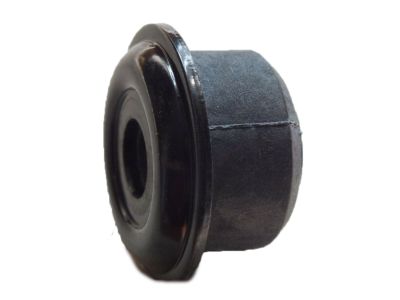

Acura 51312-SD4-020 Stabilizer End Rubber

To remove the Sway Bar Bushing, undo the rear wheel lug nuts, raise the vehicle, place it on jack stands, and remove the rear wheels. Remove the Sway Bar Kit-to-link bolts and the Sway Bar Kit-to-body clamp bolts and remove the Sway Bar Kit and if the bushings are damaged, replace them. Installation is the reverse of removal.

Apply the parking brake, loosen the front wheel lug nuts, raise the front of the vehicle, and support it securely on jackstands before removing the wheels. For Integra models, detach the steering/suspension crossmember from the underside of the vehicle and lower it to the ground, then remove the bolts attaching the sway bar brackets to the crossmember. For Legend models, remove the bolts attaching the sway bar brackets to the underside of the vehicle. Detach the sway bar link bolts from the radius arms for Integra models or the lower arms for Legend models, noting the order of spacers, washers, and bushings on the link bolt. Remove the bar from under the vehicle, pull the brackets off the Sway Bar Kit, and inspect the bushings for cracks, hardness, and other signs of deterioration; replace any damaged bushings. Installation follows the reverse order of removal.

Apply the parking brake and loosen the front wheel lug nuts. Raise the front of the vehicle and support it securely on jackstands, then remove the wheels. Detach the stabilizer bar links from the bar, then remove the bolts which attach the stabilizer bar brackets to the underside of the vehicle. Pull the brackets off the stabilizer bar and inspect the bushings for cracks, hardness and other signs of deterioration. If the bushings are damaged, replace them. Installation is the reverse of removal.
