How to remove and install a Valve Cover on a SOHC engine on an Acura Integra?

To remove the valve cover, first disconnect the cable from the negative terminal of the battery, ensuring you have the correct activation code for the radio if it has an anti-theft system. Next, remove the spark plug wires from the spark plugs and the retaining clips on the valve cover, marking each wire for correct installation, then position the wires aside. Detach any hoses or wires from the throttle body or valve cover that may obstruct the removal process, and wipe the valve cover thoroughly to prevent debris from contaminating the exposed cylinder head or camshaft valve train assembly. Remove the valve cover bolts and carefully lift off the valve cover and gasket, using a rubber mallet to break the seal if the gasket is stuck, avoiding prying to prevent damage to the mating surfaces. For installation, remove the old gasket and clean the mating surfaces of the cylinder head and valve cover with a rag soaked in lacquer thinner or acetone. Apply beads of RTV sealant to the corners where the cylinder head meets the rocker arm assembly, allowing the sealant to set for about five minutes until slightly hardened, especially in damp or cold conditions. Install a new molded rubber gasket into the groove around the valve cover perimeter, lubricate the sealing grommets with soapy water, and tighten the bolts in the recommended sequence to the specified torque. Finally, complete the installation by reversing the removal steps, ensuring the rubber spark plug seals are in place before reconnecting the spark plug wires.

Genuine Acura Integra Valve Cover

Cylinder Head Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Valve Covers found

View related parts

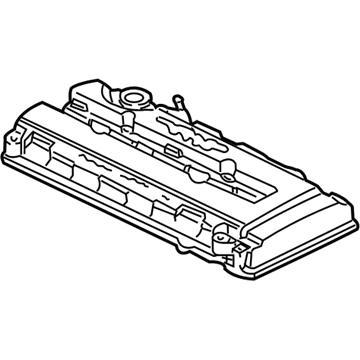

Acura Integra Cover Assembly , Cylinder Head
Part Number: 12310-5BA-A01
$182.29 MSRP: $260.34
You Save: $78.05 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Cover, Valve Cover Gasket
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Gasket, Head Cover
Part Number: 12341-59B-013
$17.54 MSRP: $24.47
You Save: $6.93 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Cover Gasket
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra COVER, CYLN HEAD
Part Number: 12310-6VJ-A01
$1305.50 MSRP: $1864.47
You Save: $558.97 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover, Cylinder Head
Part Number: 12310-6LM-A01
$124.80 MSRP: $176.27
You Save: $51.47 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cylinder Head Cover
Part Number: 12310-P73-A00
$415.27 MSRP: $593.07
You Save: $177.80 (30%)
Product Specifications
- Other Name: Cover, Cylinder Head; Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover Assembly, Cylinder Head
Part Number: 12310-PG7-661
Product Specifications
- Other Name: Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover Assembly, Cylinder Head
Part Number: 12310-PG7-660
Product Specifications
- Other Name: Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover, Cylinder Head
Part Number: 12310-PR4-A00
Product Specifications
- Other Name: Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover, Cylinder Head
Part Number: 12310-P61-A00
Product Specifications
- Other Name: Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover, Cylinder Head
Part Number: 12310-P75-A10
Product Specifications
- Other Name: Valve Cover
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
View related parts
Acura Integra Cover, Cylinder Head
Part Number: 12310-P75-A00
Product Specifications
- Replaced by: 12310-P75-A01
- Warranty: This genuine part is guaranteed by Acura's factory warranty.

Acura Integra Valve Cover

The Acura Integra Valve Cover seals the top of the cylinder head to keep engine oil around the valvetrain while blocking dirt and other debris. The Valve Cover is bolted to the cylinder head and uses a gasket to keep pumped oil from leaking out. A properly tightened Valve Cover keeps debris from entering the moving parts below and allows proper lubrication. On this Acura model, it is made from plastic or metal such as aluminum. The aluminum examples may have fins or script. Also existing are painted or chrome steel versions, but all types perform the same sealing function. The openings on the Valve Cover hold a PCV valve, oil filler, or breather cap, allowing ventilation and refilling without exposing the valvetrain. If the gasket is damaged by heat or if the plastic or metal case warps or cracks, oil can leak onto hot exhaust parts, so prompt replacement will safeguard the Acura Integra engine. To maintain the reliability of your Acura Integra, the steps of removing the Valve Cover include undoing the fasteners, moving aside hoses, and carefully lifting the part away. It also involves cleaning off the old gasket material and reinstalling it to the proper torque.

We provide a broad range of OEM Acura Integra Valve Cover at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura Integra Valve Cover Parts Questions & Experts Answers

Cylinder Head Cover
12310-P73-A00
Q: How to remove and install a Valve Cover on a SOHC engine on an Acura Integra?
A:
To remove the valve cover, first disconnect the cable from the negative terminal of the battery, ensuring you have the correct activation code for the radio if it has an anti-theft system. Next, remove the spark plug wires from the spark plugs and the retaining clips on the valve cover, marking each wire for correct installation, then position the wires aside. Detach any hoses or wires from the throttle body or valve cover that may obstruct the removal process, and wipe the valve cover thoroughly to prevent debris from contaminating the exposed Cylinder Head or camshaft valve train assembly. Remove the valve cover bolts and carefully lift off the valve cover and gasket, using a rubber mallet to break the seal if the gasket is stuck, avoiding prying to prevent damage to the mating surfaces. For installation, remove the old gasket and clean the mating surfaces of the cylinder head and valve cover with a rag soaked in lacquer thinner or acetone. Apply beads of RTV sealant to the corners where the cylinder head meets the Rocker Arm assembly, allowing the sealant to set for about five minutes until slightly hardened, especially in damp or cold conditions. Install a new molded rubber gasket into the groove around the valve cover perimeter, lubricate the sealing grommets with soapy water, and tighten the bolts in the recommended sequence to the specified torque. Finally, complete the installation by reversing the removal steps, ensuring the rubber spark plug seals are in place before reconnecting the spark plug wires.
