Genuine Acura Integra Control Arm

Acura Integra Control Arm Parts Questions & Answers

• Suspension Control Arm
  51350-ST7-010
  Q: How to Replace a Lower Control Arm?

  A: To replace the lower control arm, loosen the front wheel lug nuts, raise the vehicle, place it securely on jackstands and remove the wheel. Detach the stabilizer bar link from the lower control arm and the damper fork from the control arm. Remove the cotter pin from the castle nut on the lower balljoint stud, loosen the nut and separate the lower control arm from the balljoint in the steering knuckle with a puller. Remove the pivot bolt from the inner end of the lower control arm and the nut from the rear pivot stud, pull the stud out of the bushing and remove the arm noting which way the washers face. Installation is the reverse of removal, raising the lower control arm with a floor jack to simulate normal ride height before tightening the front pivot bolt or the rear pivot stud nut.

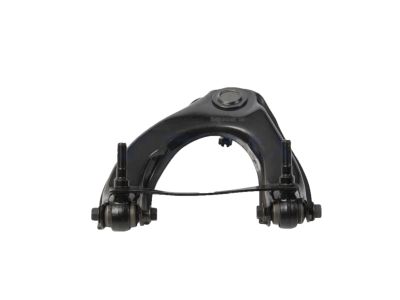

• Left Front Arm Assembly (Upper)
  51460-SR3-023
  Q: How Do You Remove and Install the Upper Control Arm on a Acura Integra?

  A: Loosen the front wheel lug nuts, raise the vehicle, place it securely on jackstands and remove the wheel. Support the lower control arm with a floor jack. For an Integra, remove the Shock Absorber assembly. Remove the cotter pin and loosen, but do not remove, the castle nut from the upper balljoint stud. Separate the upper control arm from the Steering Knuckle with a puller, then remove the castle nut. For a Civic or CR-V, remove the upper control arm pivot bolts from inside the engine compartment, then remove the upper control arm. For an Integra, remove the upper control arm-to-shock tower nuts. Installation is the reverse of removal, and be sure to tighten all of the fasteners. For a Civic or CR-V, raise the front suspension with a floor jack to simulate normal ride height before tightening the control arm pivot bolts.
